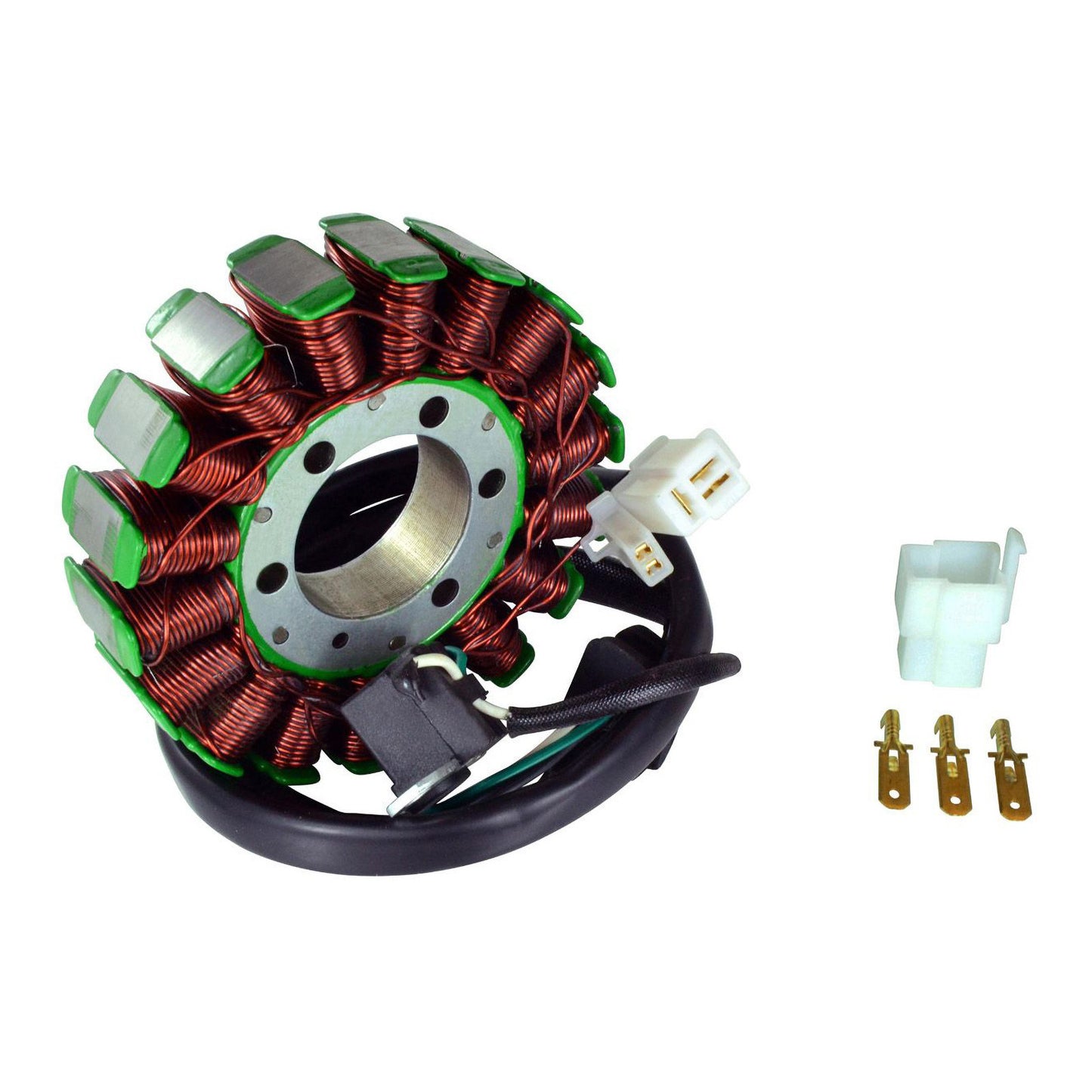

RMSTATOR Generator Stator Suzuki SV650 '03-'09 (RMS010-102166)

Engineered as a direct OEM replacement for Suzuki SV650 models 2003–2009, this stator delivers seamless compatibility and straightforward installation. Built with premium lamination and high-grade copper windings rated to 200°C, it ensures reliable electrical generation under demanding conditions. The assembly includes the pickup pulsar coil, connector, and rubber grommet - everything needed for a complete swap. Each unit undergoes rigorous testing before dispatch to guarantee performance from day one.

Brand new aftermarket generator stator

Features

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick-up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause for repetitive electrical issues.

Specifications

• Interior diameter: 38 mm
• Exterior diameter: 108 mm
• Thickness: 19 mm
• Length of wires stator to grommet: 120 mm
• Length of wires grommet to plug: 550 mm
• Length of pickup coil's wire to grommet: 59 mm
• Number of wires: 5
• Number of plugs: 2
• Number of pins: 5

Wire to wire resistance

• Alternator: Black to Black = 0.5 ohms +-20%
• Pickup: Green to White = 194 ohms +-20%
