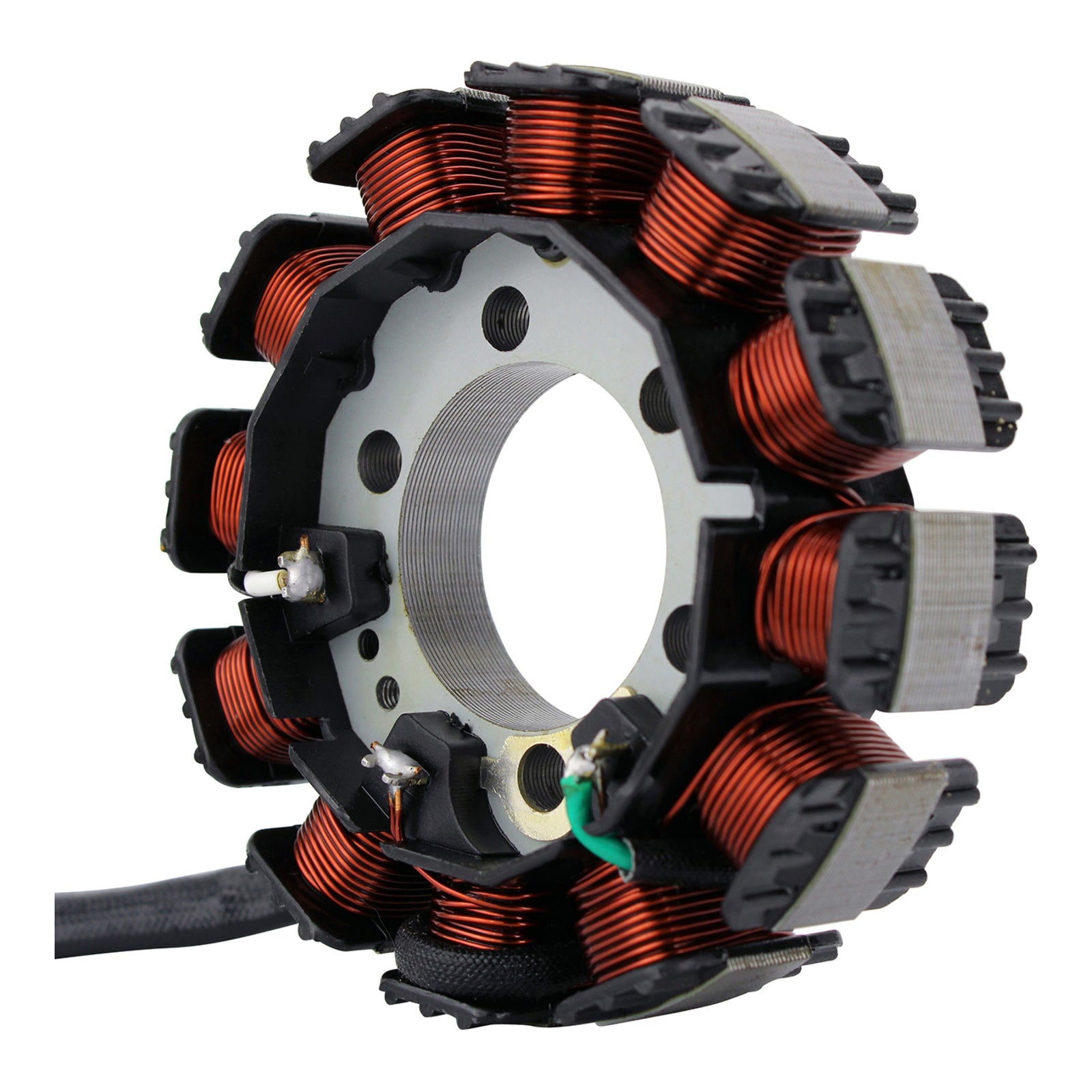

RMSTATOR Generator Stator Honda CRF110F '19-'21 (RMS010-107086)

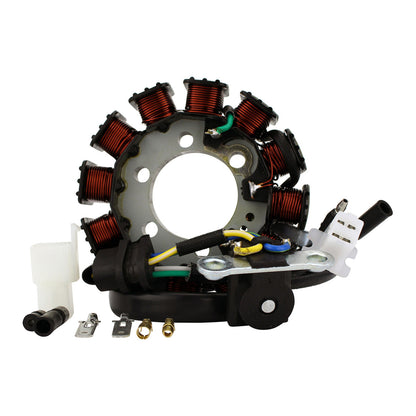

Engineered as a direct OEM replacement for Honda CRF110F models ('19–'21), this stator delivers reliable ignition and charging performance. Built with premium lamination and high-grade copper windings rated to 200°C, it handles demanding riding conditions without compromise. The assembly arrives complete with pulsar coil, connectors, and rubber grommet - no additional sourcing required. Every unit undergoes rigorous testing before dispatch to ensure consistent quality and immediate fitment.

Brand new aftermarket Stator

Features

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications

• Interior diameter: 35 mm
• Exterior diameter: 92 mm
• Thickness: 10 mm
• Length of wires stator to grommet: 100 mm
• Length of wires grommet to plug: 380 mm
• Length of pickup coil's wire to grommet: 20 mm
• Number of wires: 4
• Number of plugs: 3
• Number of pins: 4
• Number of poles: 12

Wire to wire resistance

• Alternator: = White to Green 0.8 ohms +-20%
• Pickup: = White/Yellow to Blue/Yellow 194 ohms +-20

Note: Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY
