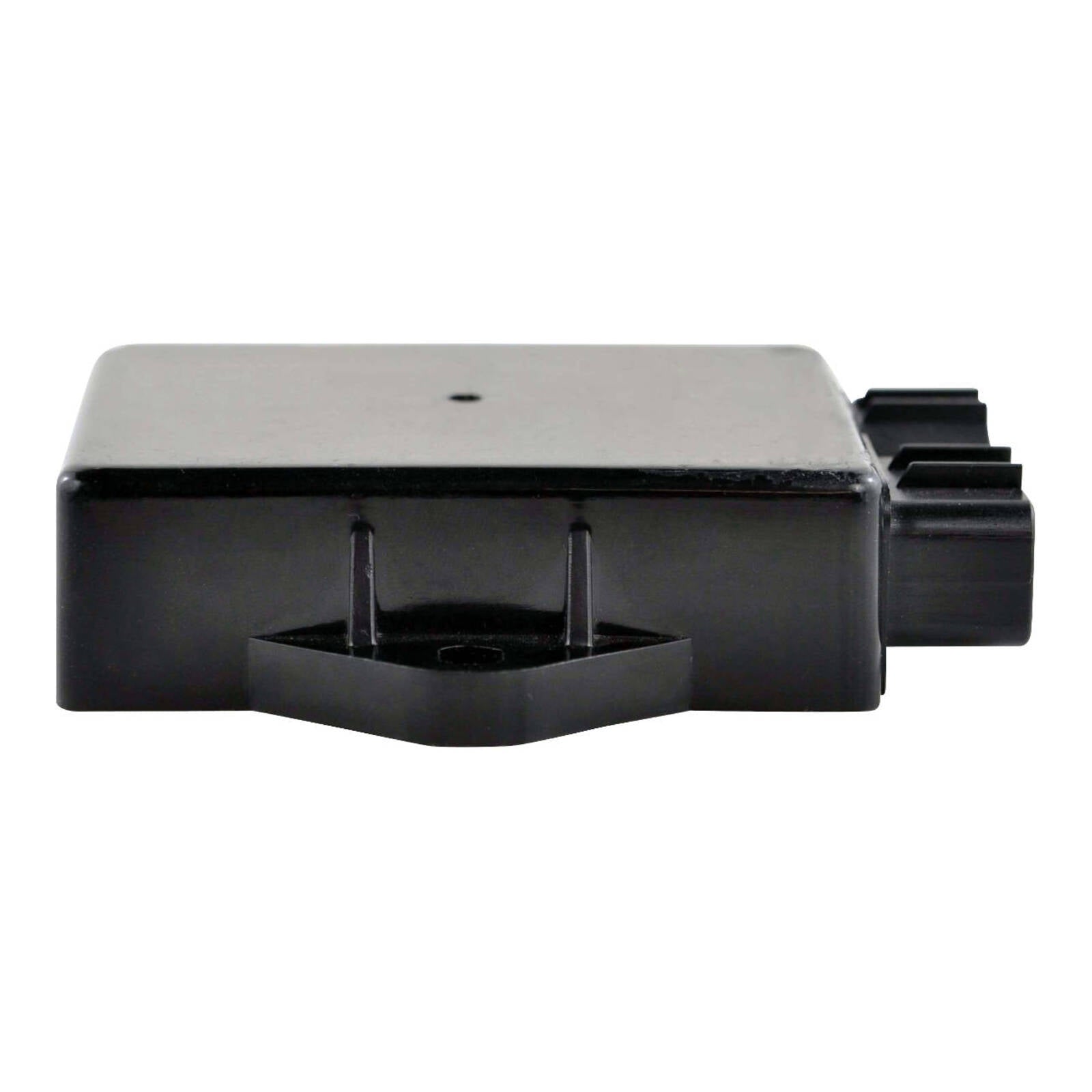

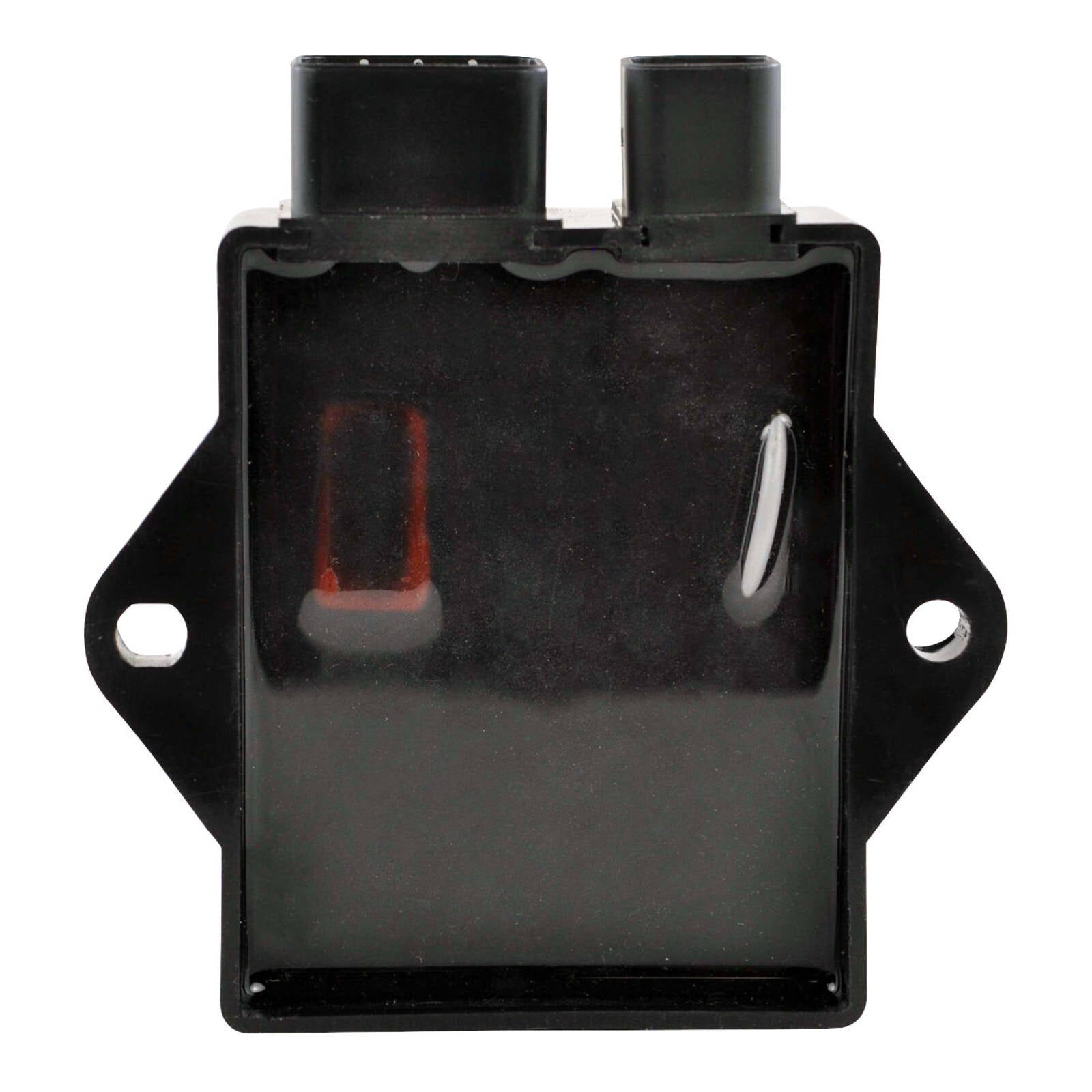

CDI Box Yamaha Outboard (Refer to Fitments) (RMS030-103087)

CDI Box Yamaha Outboard (Refer to Fitments) (RMS030-103087)

$355.99 NZD
$355.99 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Plug-and-play, aftermarket replacement CDI box for Yamaha outboard motors from RM Stator. Refer to fitment guide for models.



Dimensions:

  • Width: 150mm
  • Length: 156mm
  • Height: 26mm
  • Fixation holes, centre to centre: 143mm



Other specifications:

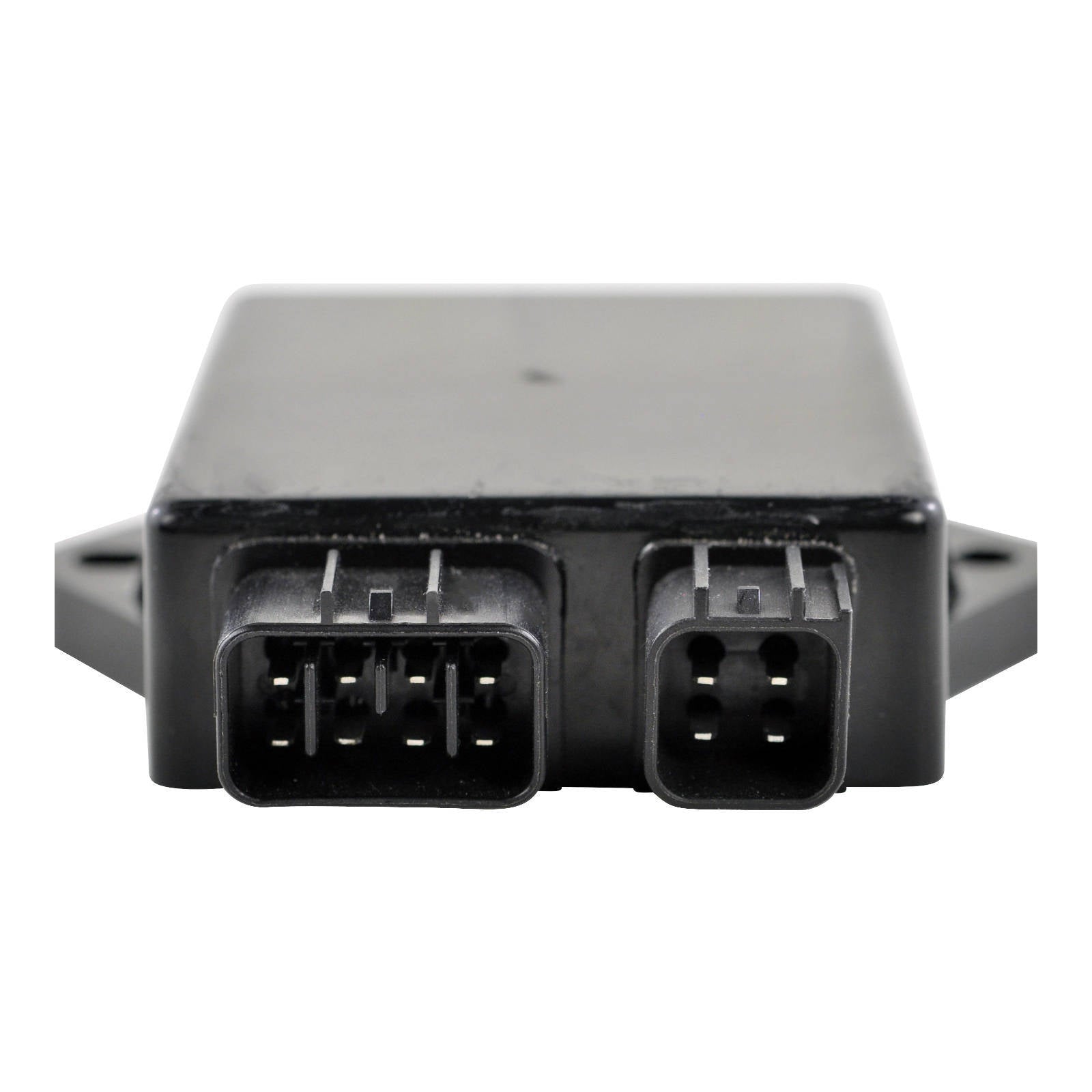

  • Number of plugs: 2
  • Number of pins: 12



Details:

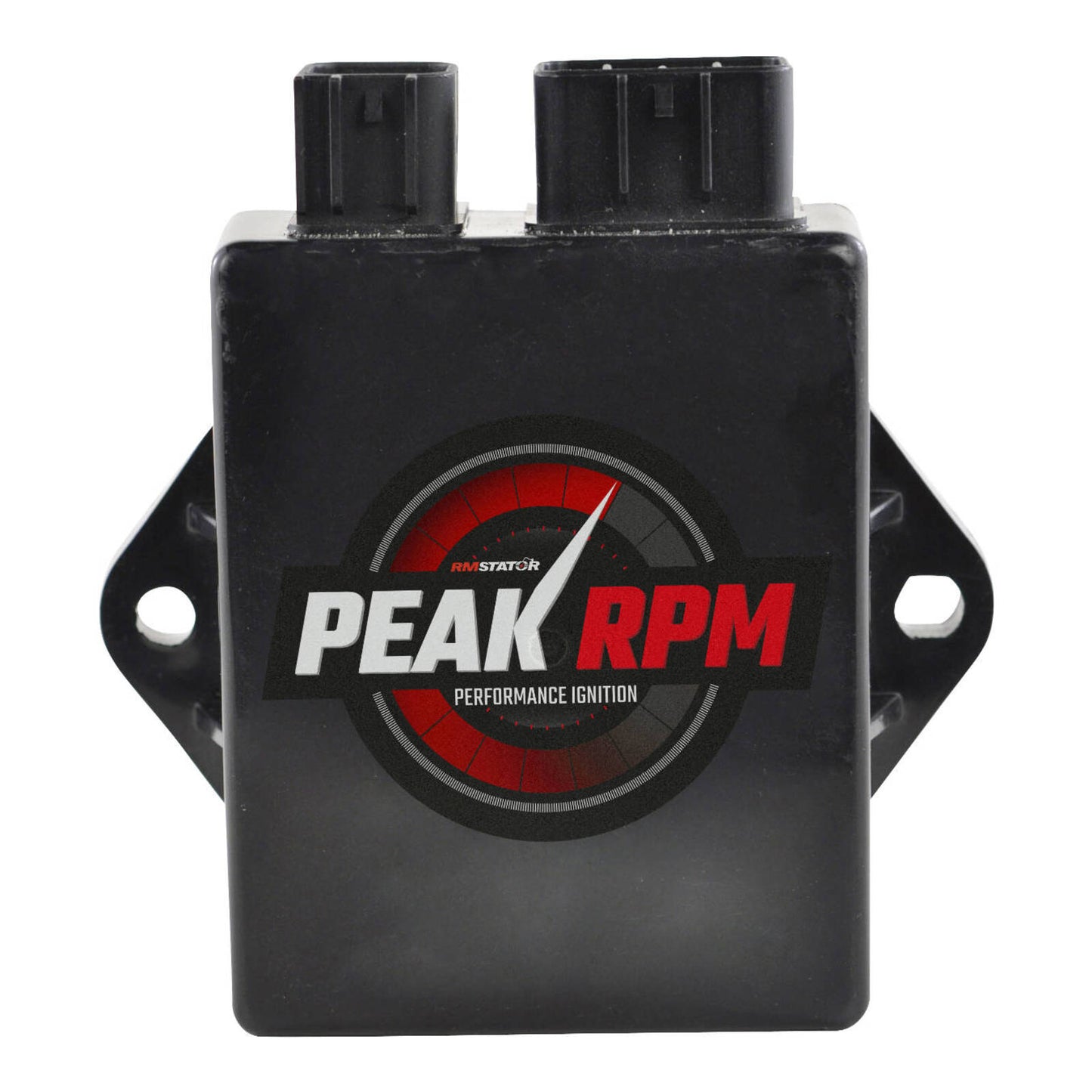

  • RM Stator's PeakRPM technology provides a more aggressive timing curve for increased throttle response
  • Ride at full throttle with their application-specific CDI box that raises the rev limiter by 1000 RPM
  • Enjoy fast and easy installation with their plug and play design and included dielectric connector grease
  • OEM-grade electronic components and printed circuit boards for long-term reliability and performance
  • 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying
