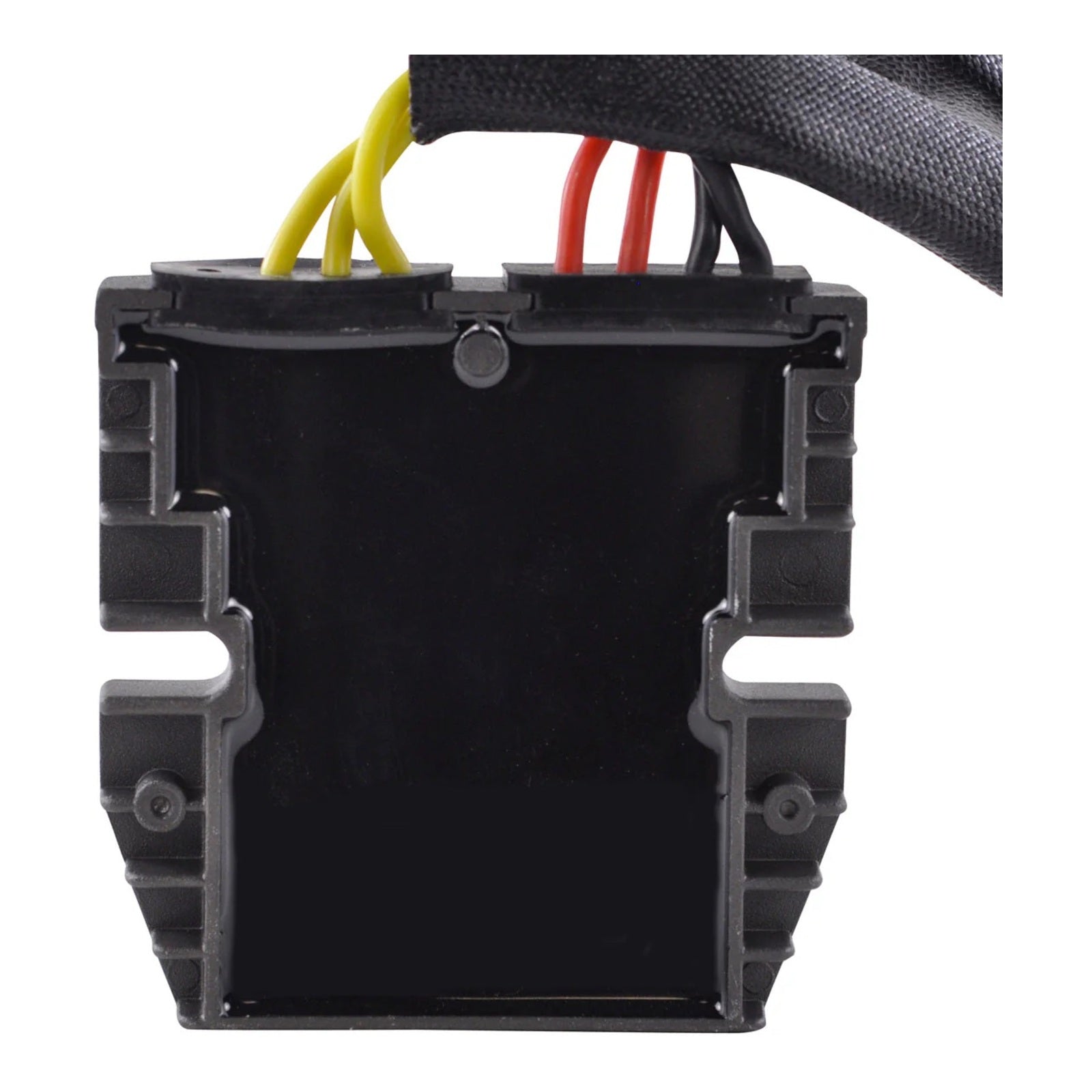

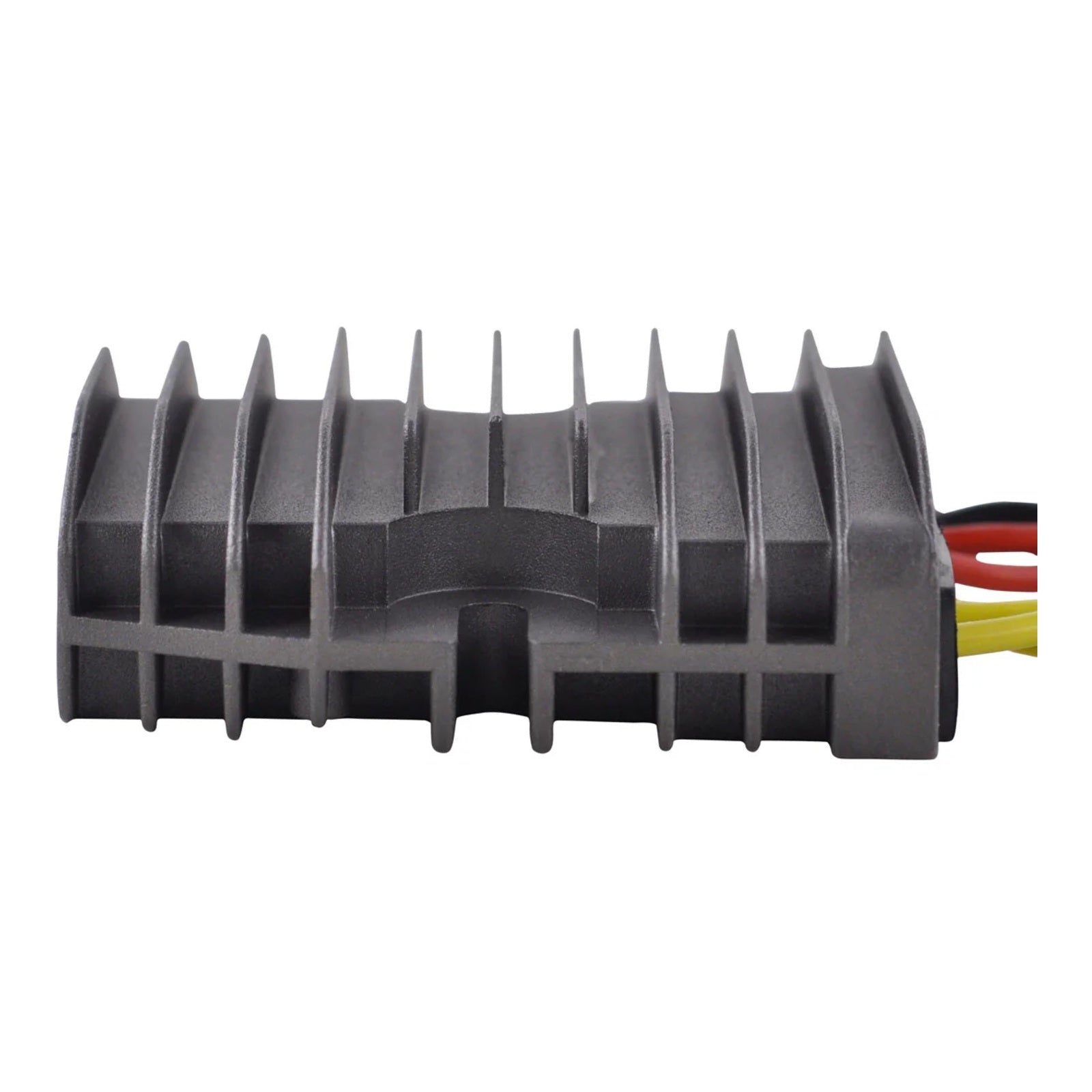

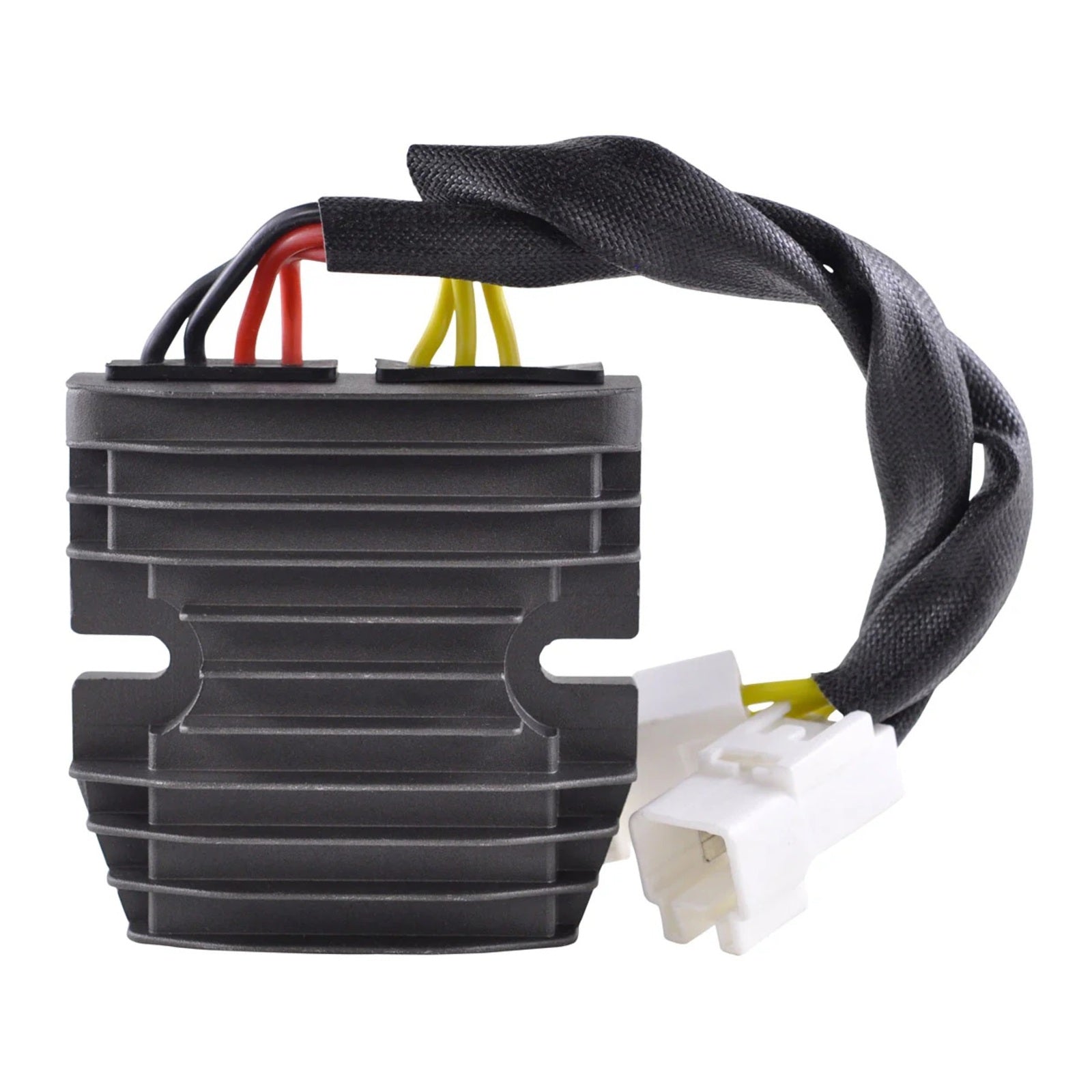

MOSFET Regulator Honda Assorted Fitments (RMS020-102340)

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required.
• Higher grade of electric components.
• Improved heat sink and charging capabilities.
• The quality exceeds the OEM equipment.
• All shipped products are tested.

Technical Data:

• Dimensions:
  • Width: 90 mm
  • Length: 90 mm
  • Height: 30 mm
  • Wires length: 220 and 210 mm
  • Fixation holes centre to centre: 75 mm
• Other specifications:

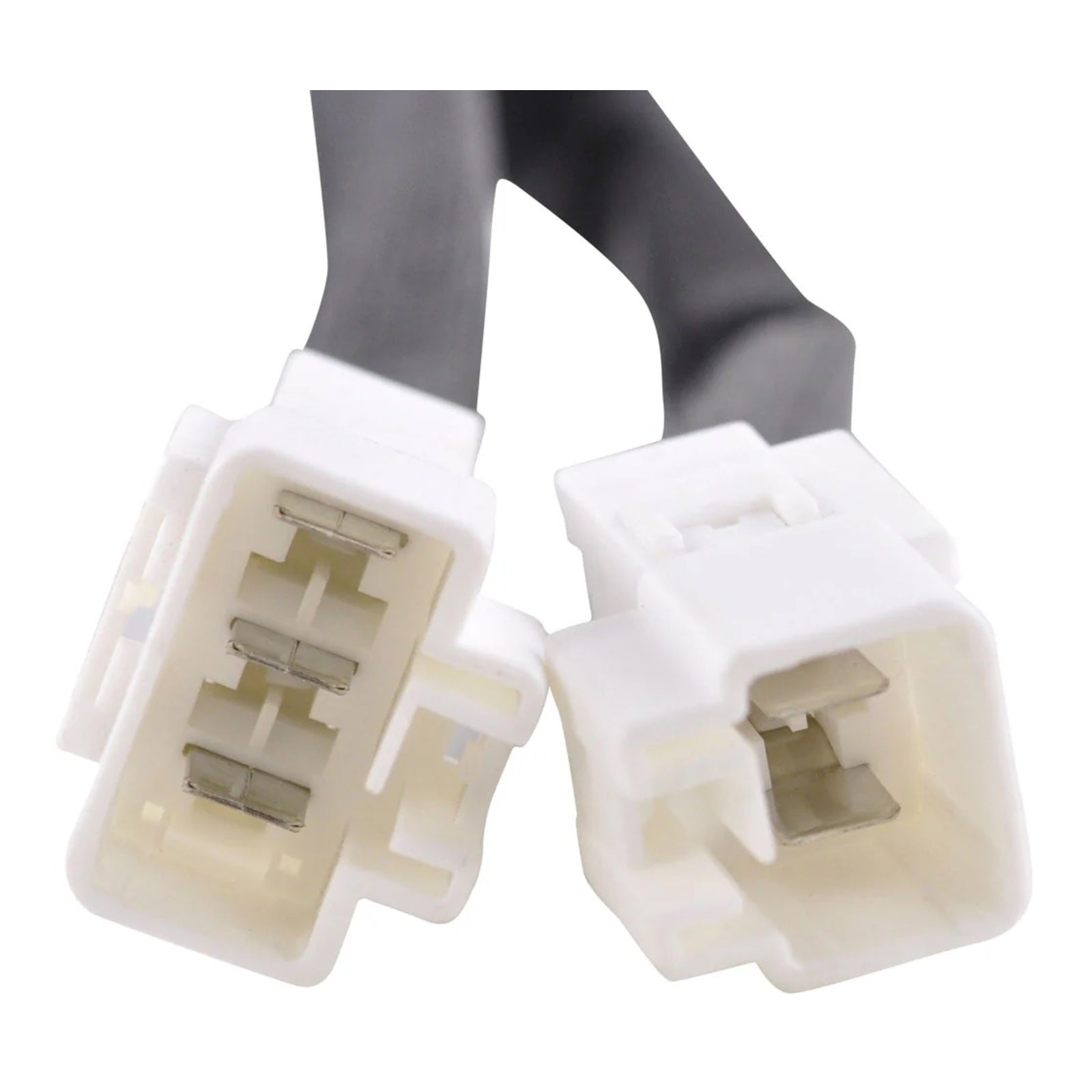

  • Number of plugs: 2
  • Number of pins: 5
  • Number of wires: 5
  • Minimum Charging Voltage: 14.5V +- 0.5V
  • Maximum Charging Current: 50A500W
  • Open Circuit Voltage: 15V
  • Operation Temperature: -20° to 85°
