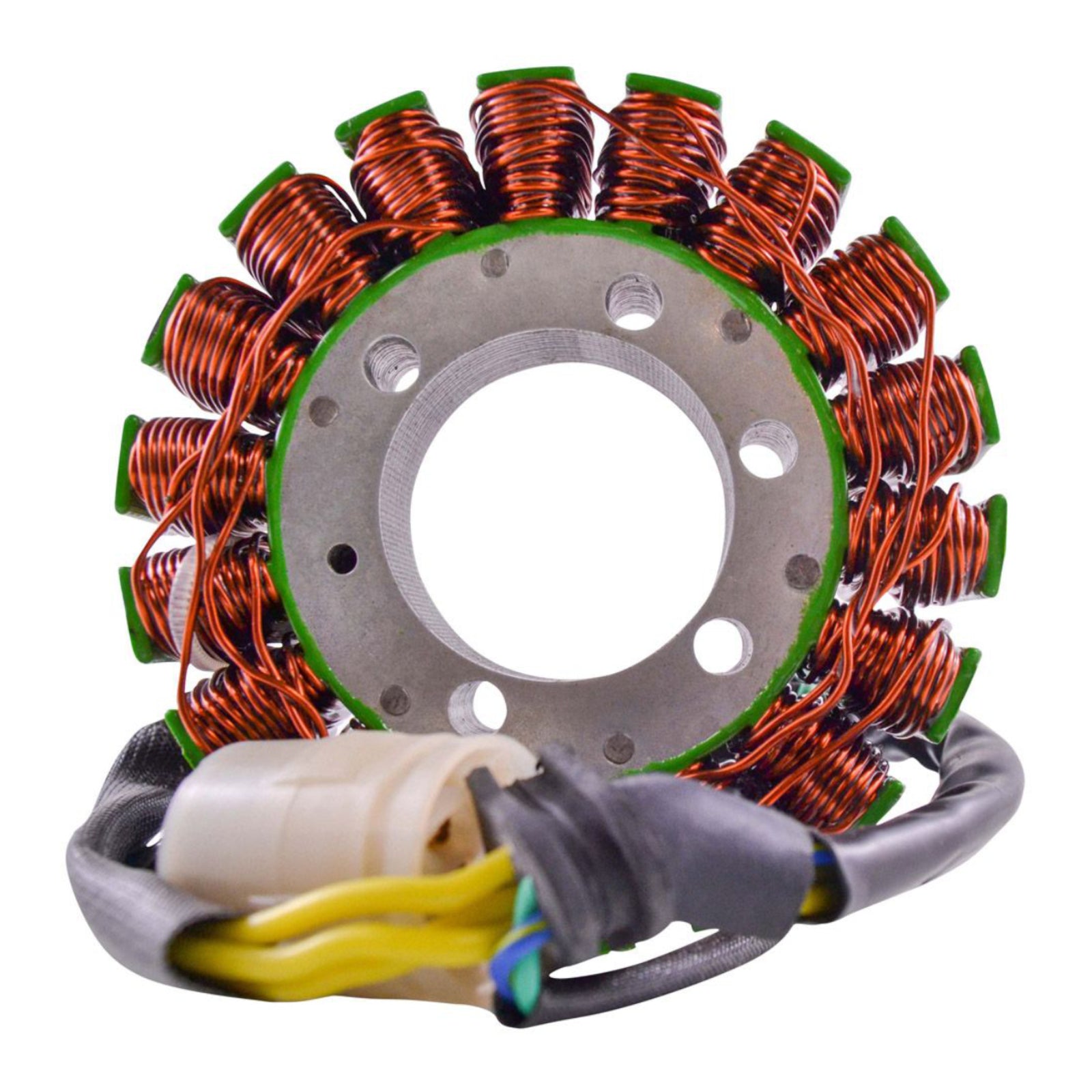

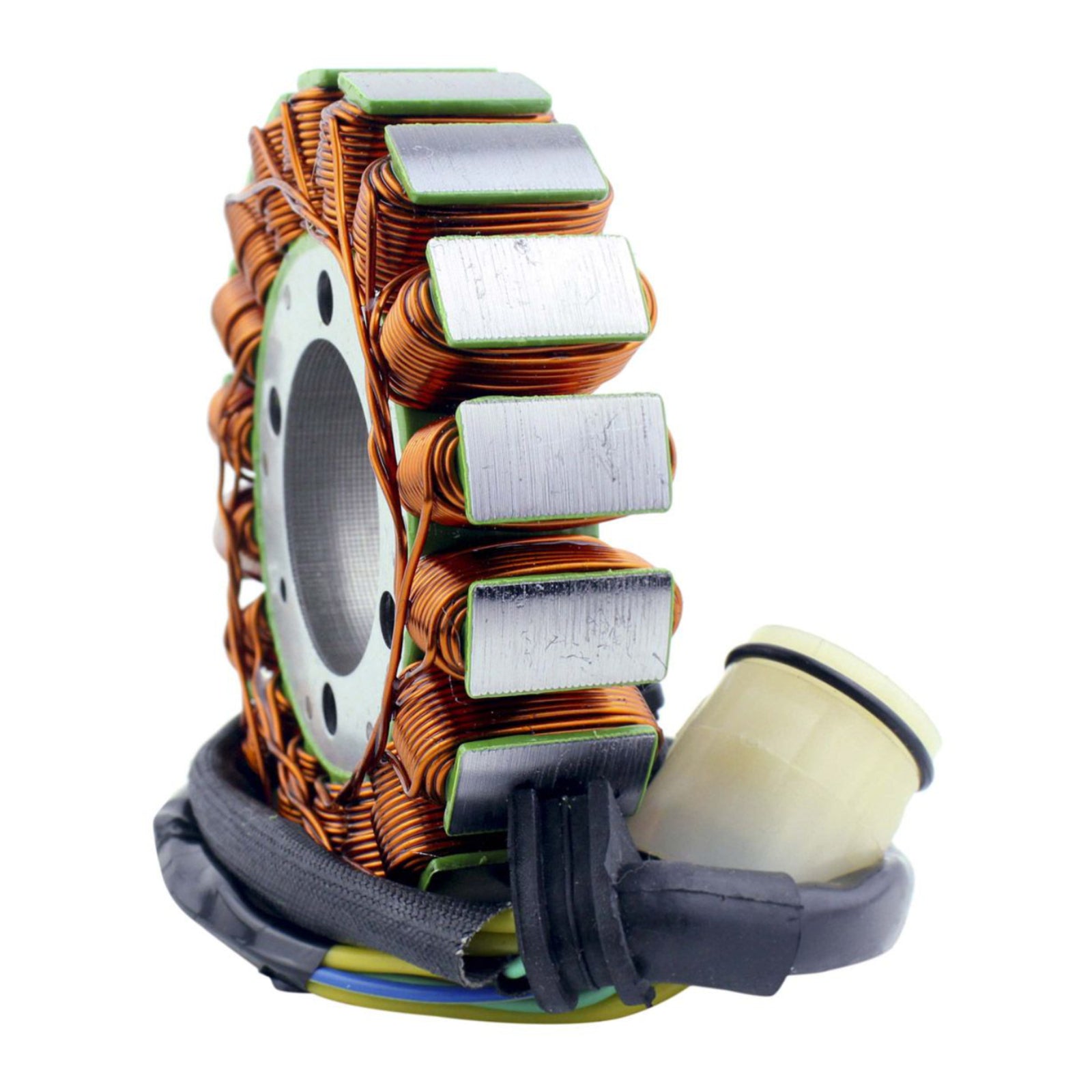

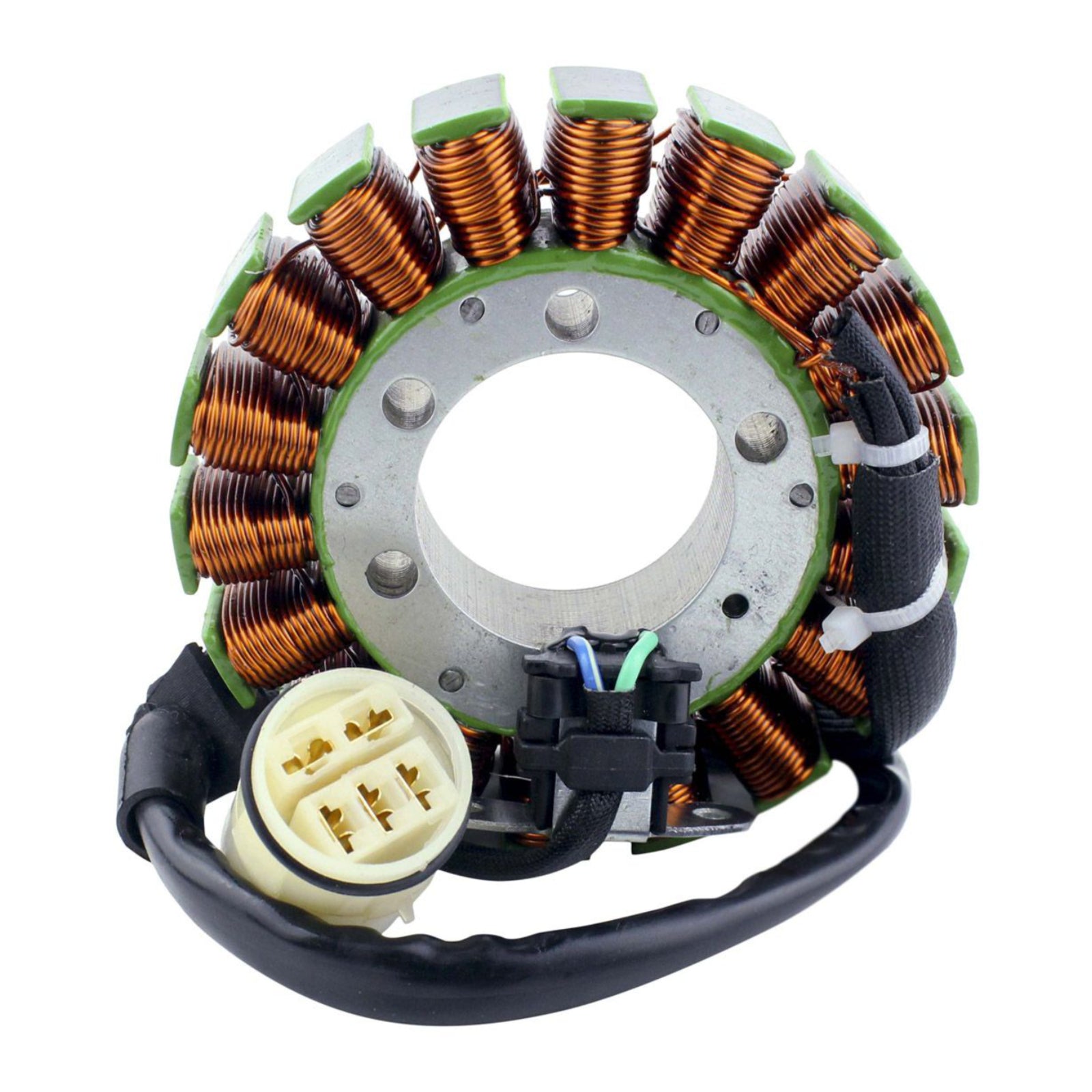

Stator Honda TRX500FE/FM/FPE/FPM '12-'13 (RM01154)

Stator Honda TRX500FE/FM/FPE/FPM '12-'13 (RM01154)

$406.99 NZD
$406.99 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Plug-and-play replacement generator stator from RM Stator.



Dimensions:

  • Interior diameter: 41mm
  • Exterior diameter: 107mm
  • Thickness: 21mm
  • Harness Length — stator to grommet: 130mm
  • Harness Length — grommet to plug: 270mm
  • Pick-up coil wire length — coil to grommet: 70mm



Other specifications:

  • Number of wires: 5
  • Number of plugs: 1
  • Number of terminals: 5
  • Wire to wire resistance:
    • Alternator: Yellow to Yellow = 0.4 ohms +-20%
    • Pick-up 1 resistance: Blue/Yellow to Green = 239 ohms +-20%



Details:

    < li>Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

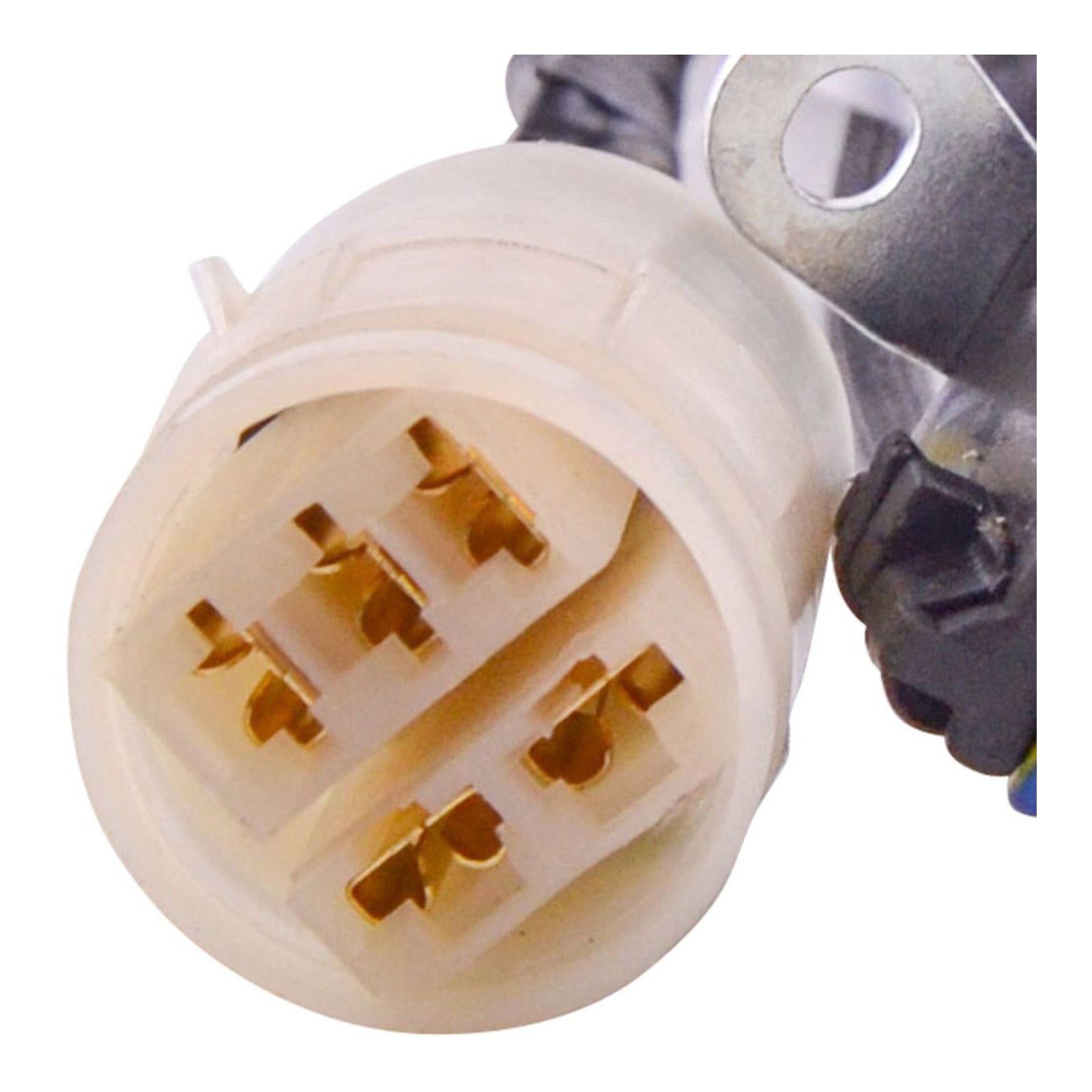

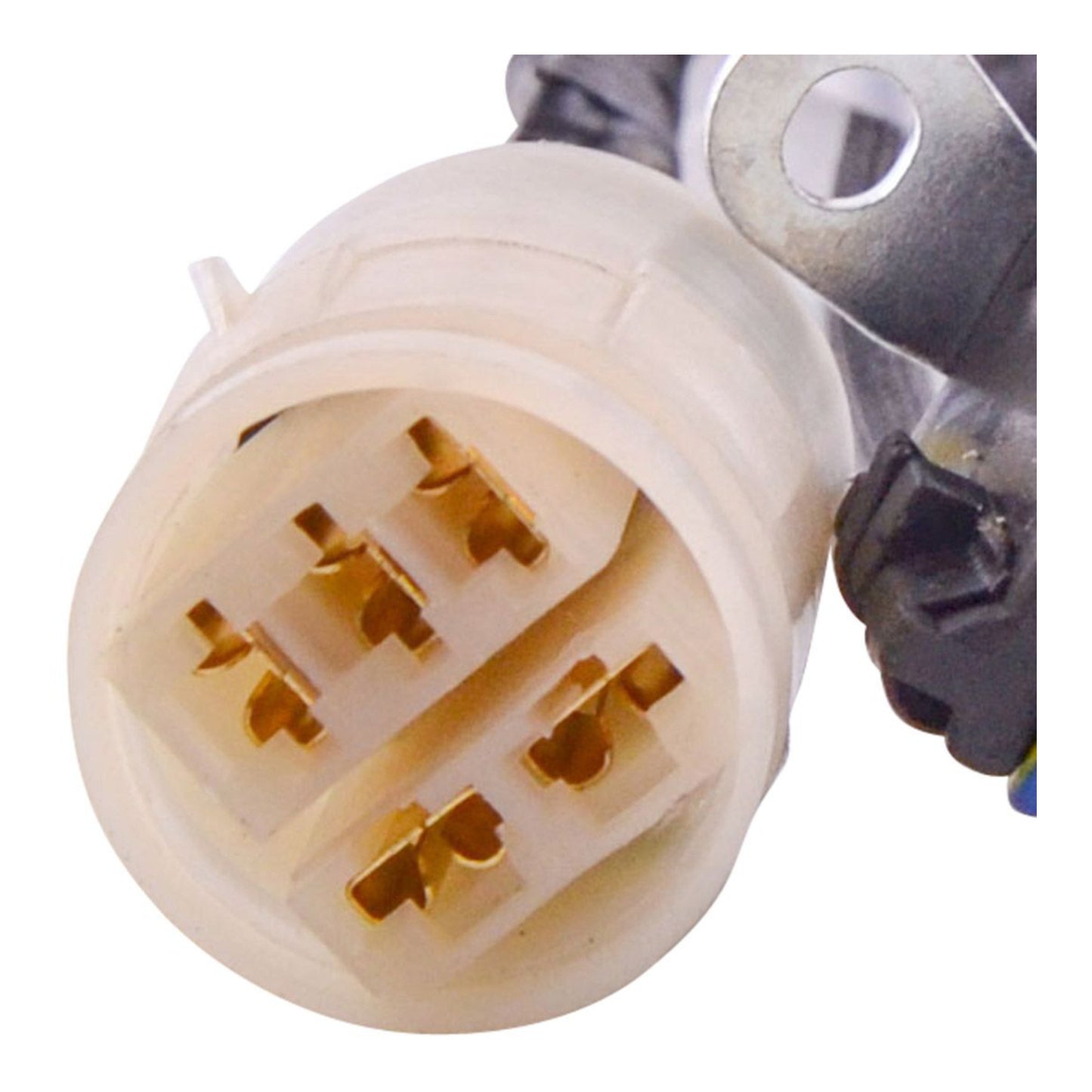

  • Connector included
  • Rubber grommet included
  • Pick-up coil included
  • All products shipped are tested
