High Output Stator Kawasaki KVF360/400 Prairie '99-'12 (RM01074)

High Output Stator Kawasaki KVF360/400 Prairie '99-'12 (RM01074)

$399.99 NZD
$399.99 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

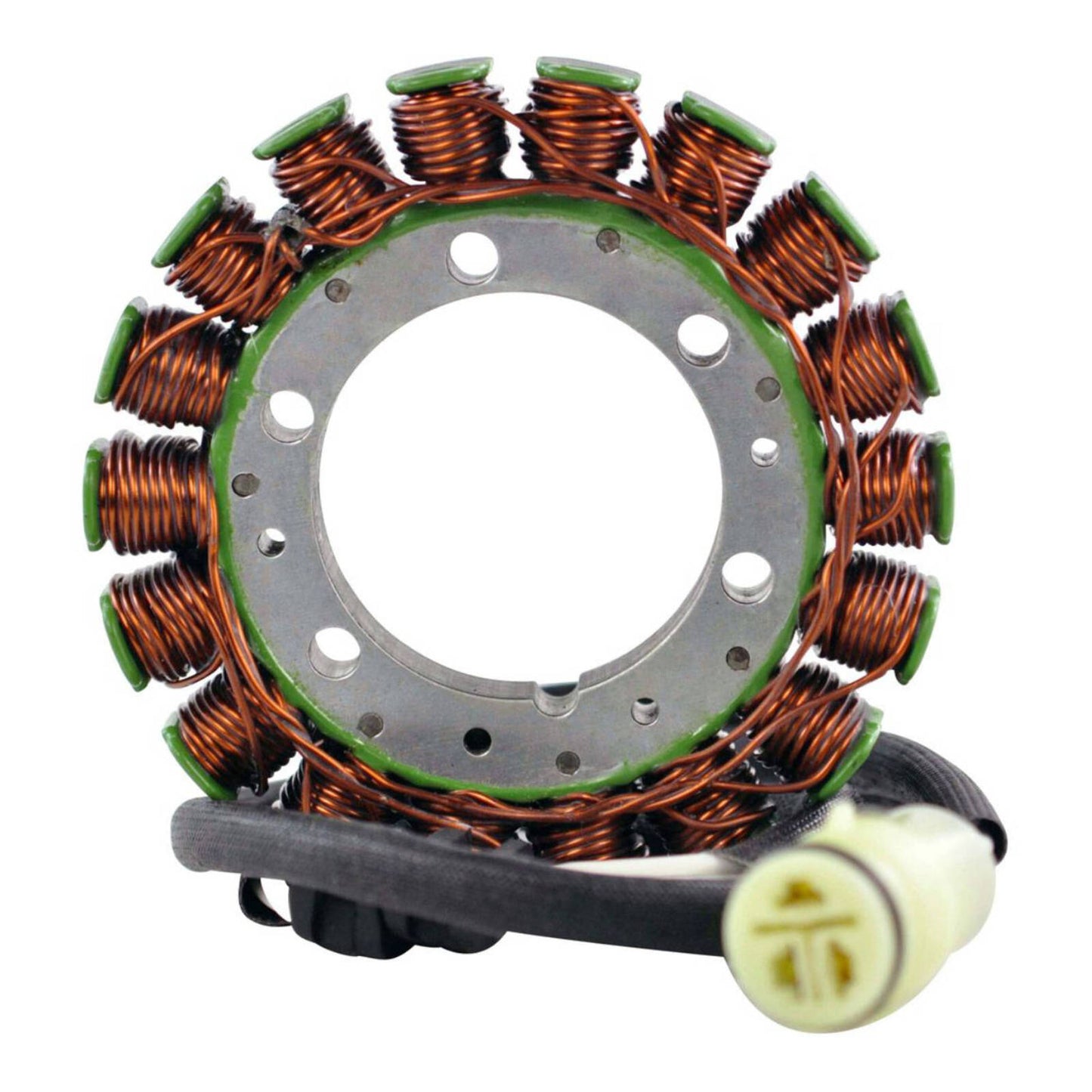

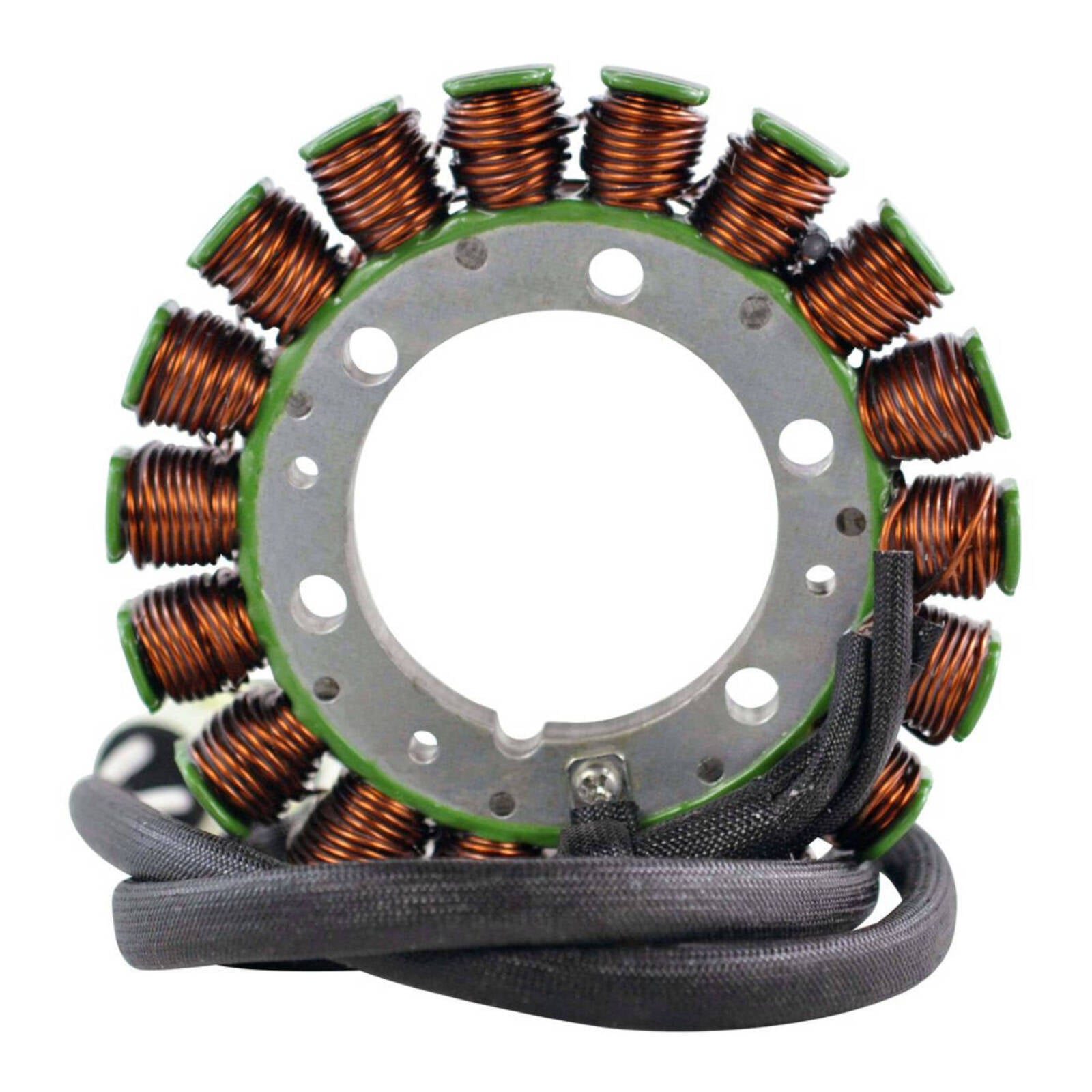

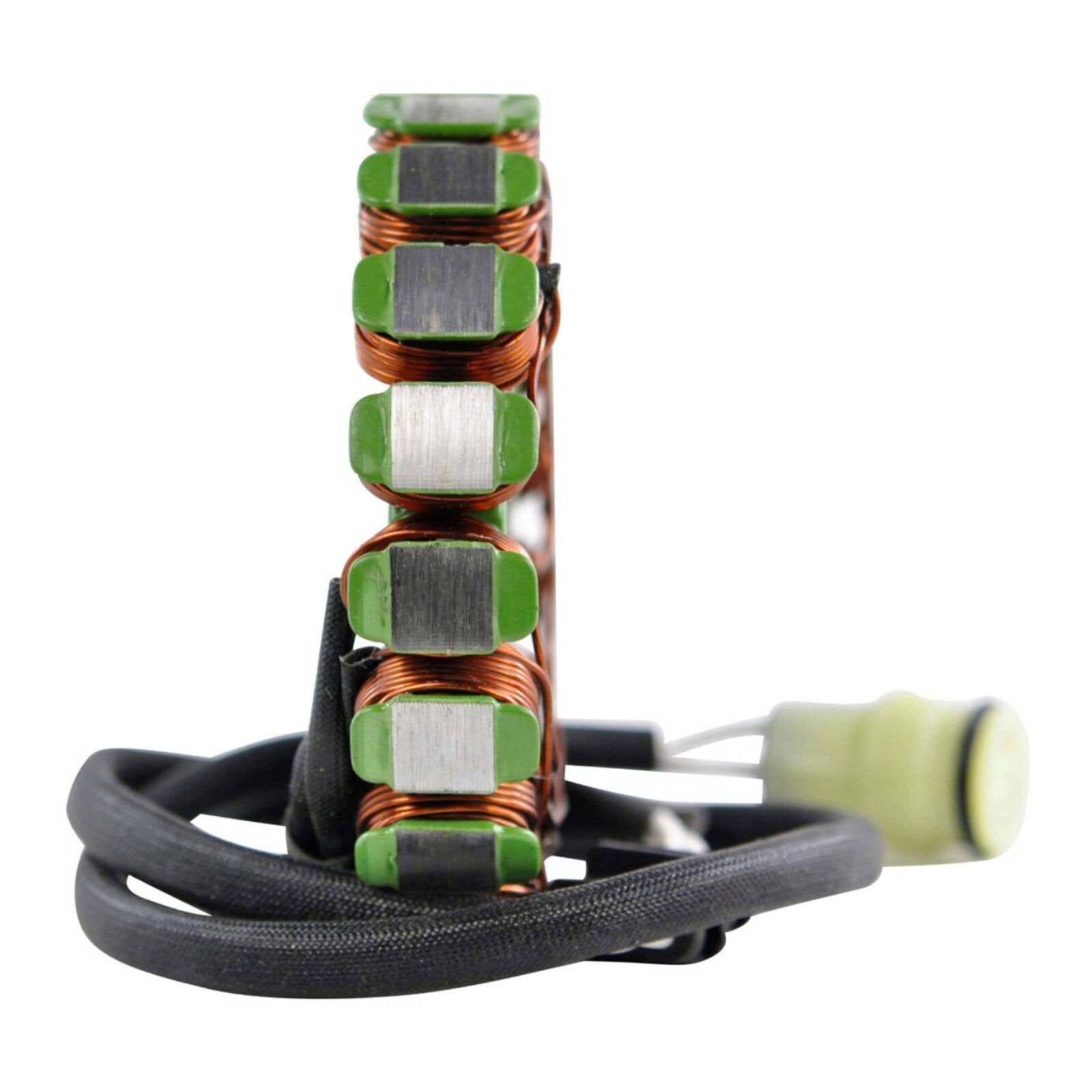

Plug-and-play, high output replacement stator from RM Stator.



Dimensions:

  • Interior diameter: 53mm
  • Exterior diameter: 115mm
  • Thickness: 14mm
  • Length of wires — stator to grommet: 90mm
  • Length of wires — grommet to plug: 500mm



Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of pins: 3
  • Wire to wire resistance:
    • Alternator: White to White = 0.4 ohms +-20%
    • Altnerator: White to Ground = O.L on Display



Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

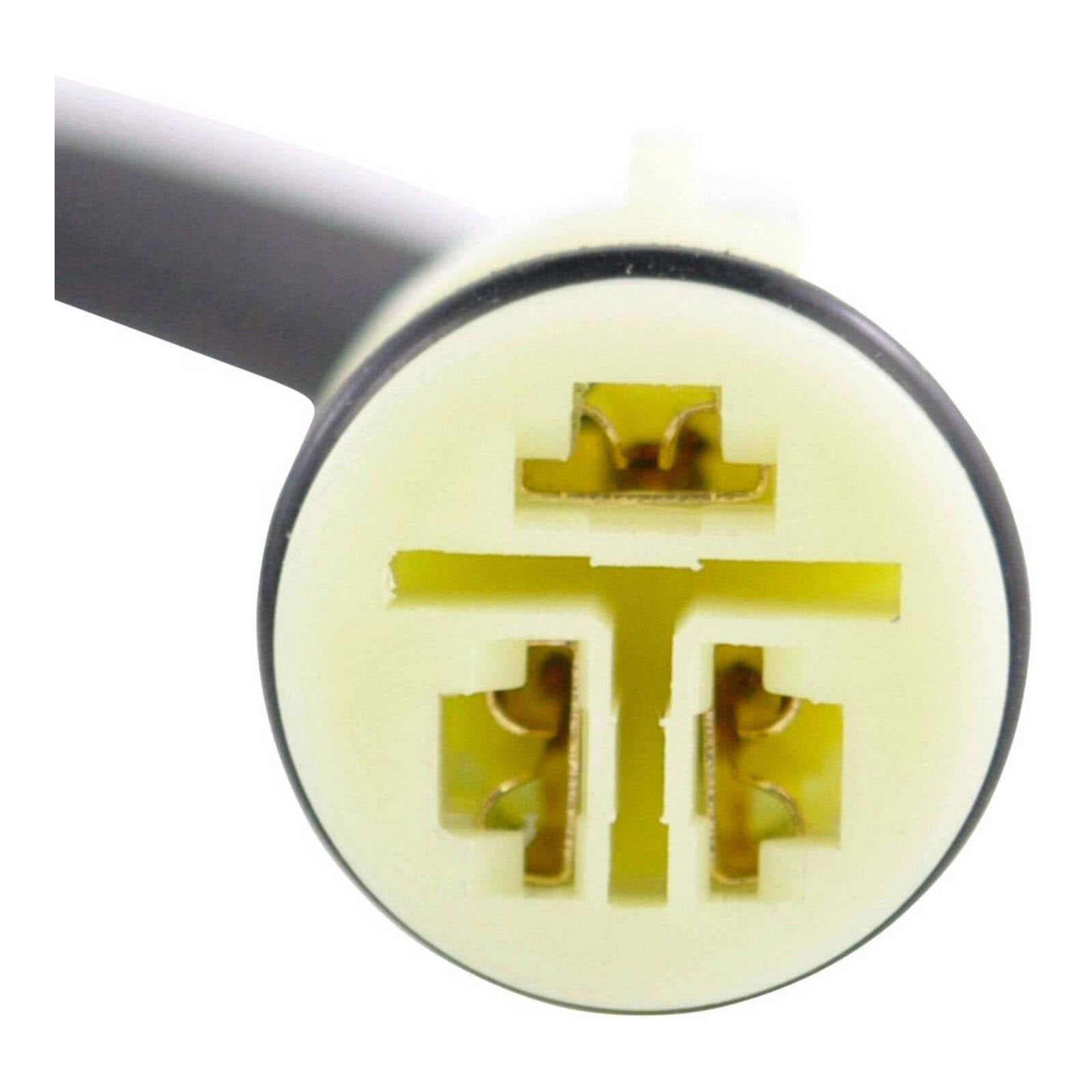

  • Connector included
  • Includes the opposite connector (main harness side) as these are often melted/corroded/defective and a major cause for repetitive electrical issues
  • Rubber grommet included
  • All products shipped are tested
