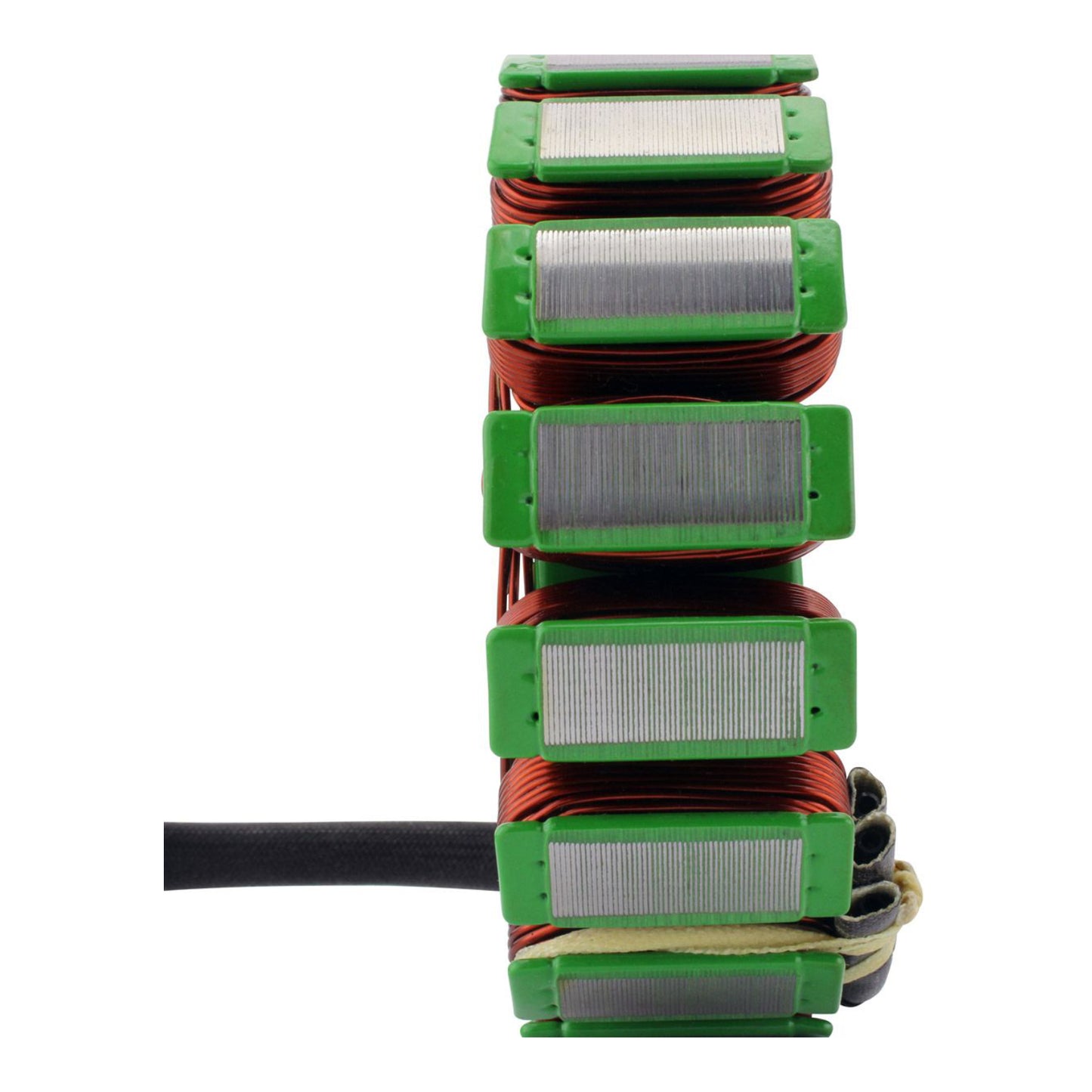

Generator Stator Suzuki DL V-Strom '14-'16' '18-'19'

Generator Stator Suzuki DL V-Strom '14-'16' '18-'19'

$499.99 NZD
$499.99 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

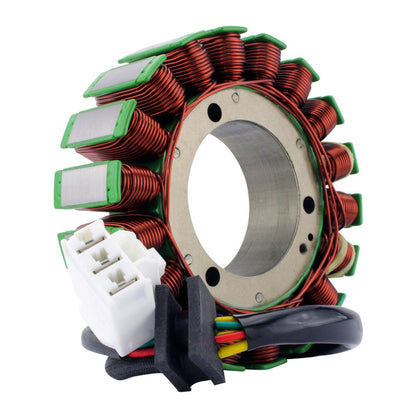

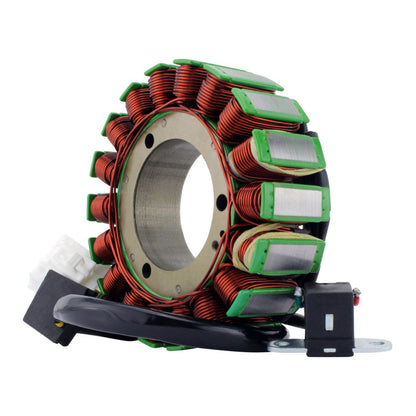

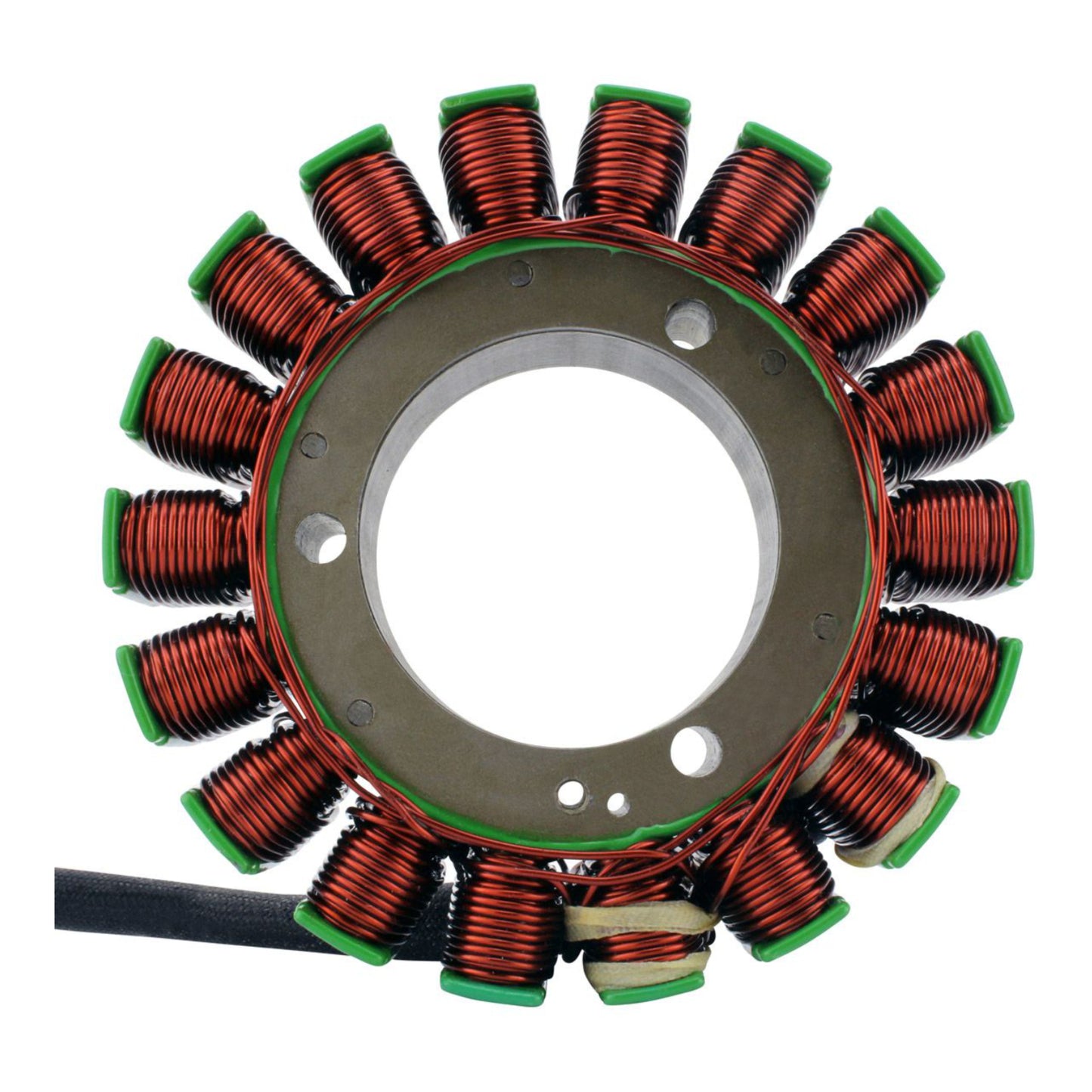

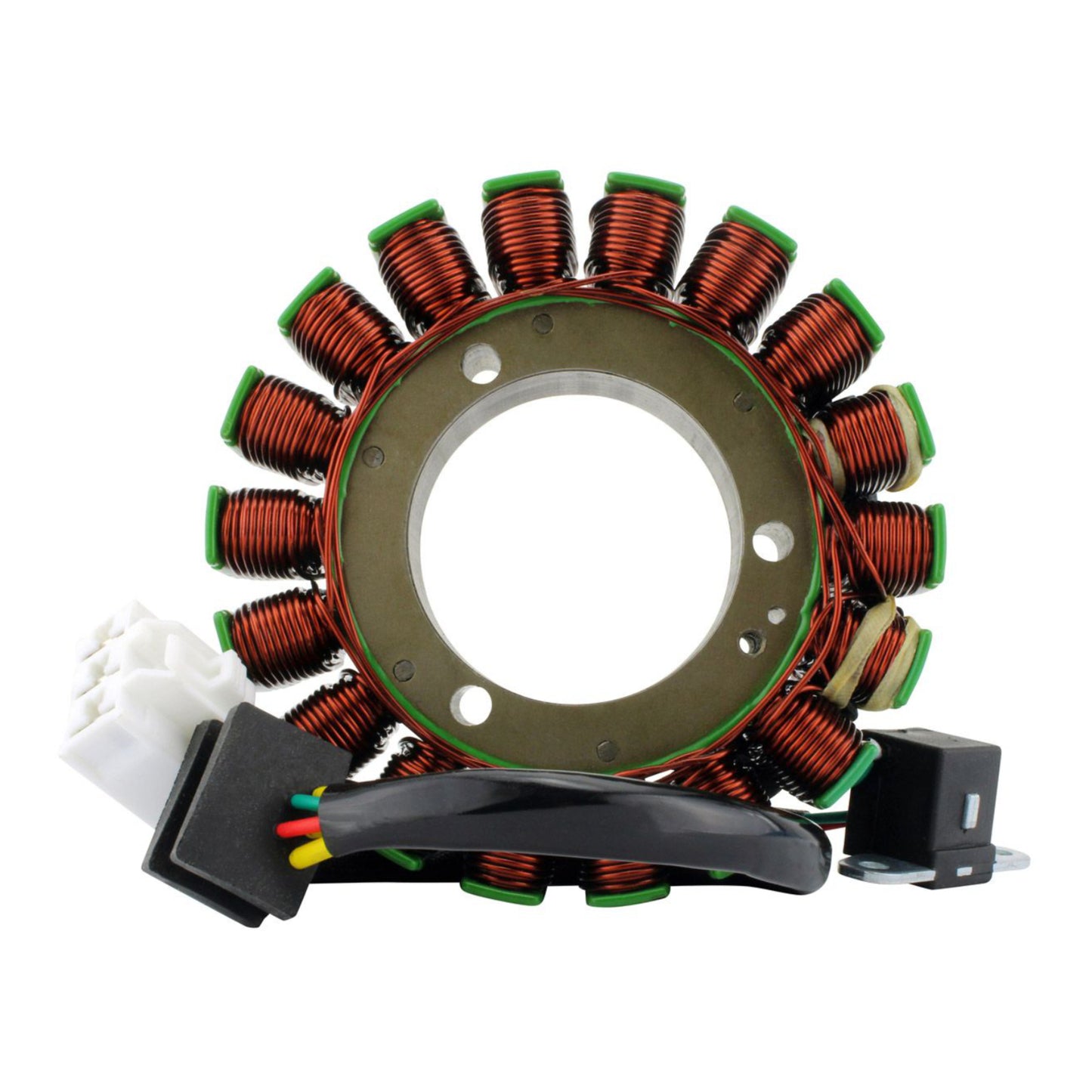

Plug-and-play replacement generator stator from RM Stator.

Dimensions:

  • Interior diameter: 54mm
  • Exterior diameter: 119mm
  • Thickness: 26mm
  • Length of wires stator to grommet: 170mm
  • Length of wires grommet to plug: 270mm
  • Length of pickup coil's wire to grommet: 150mm

Other specifications:

  • Number of wires: 5

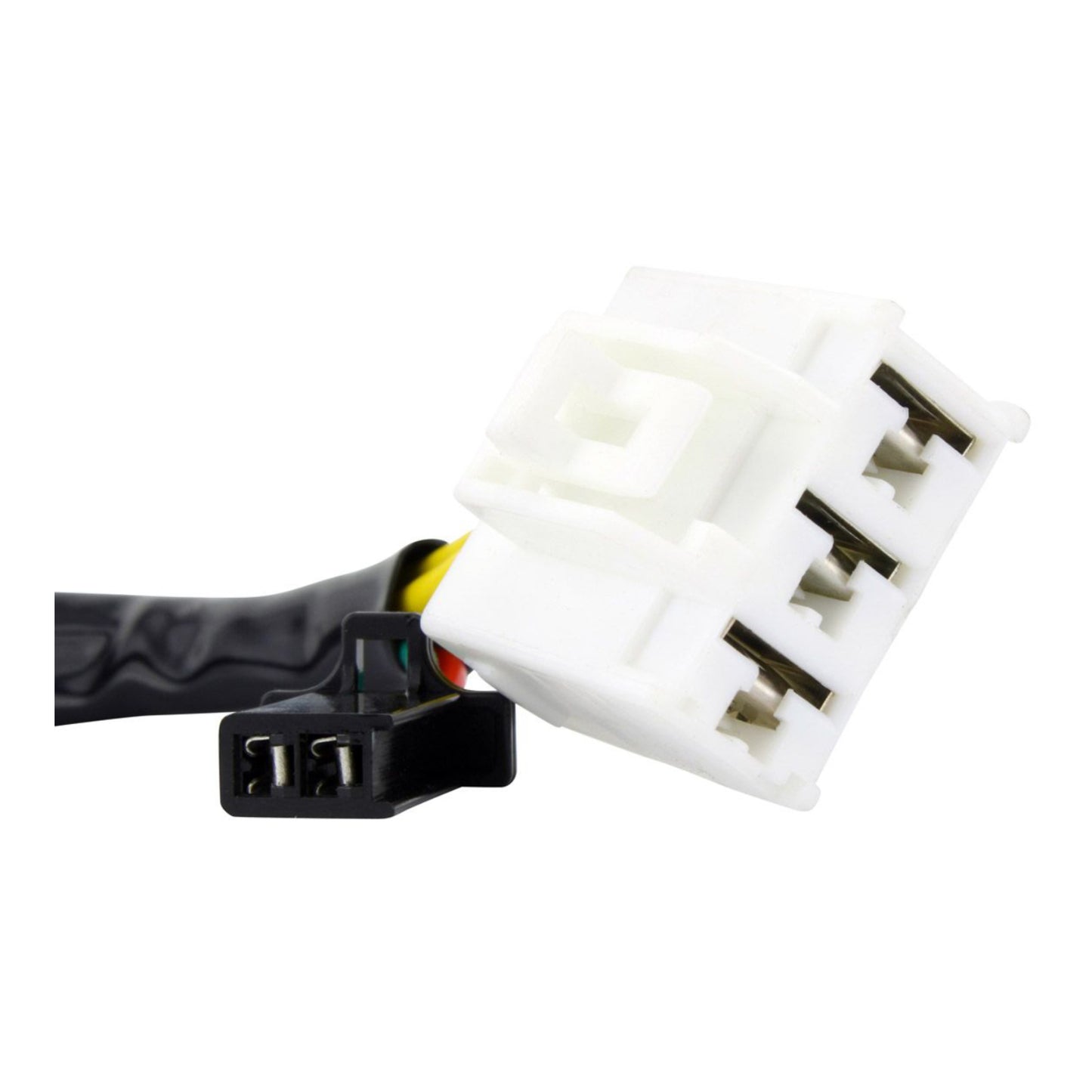

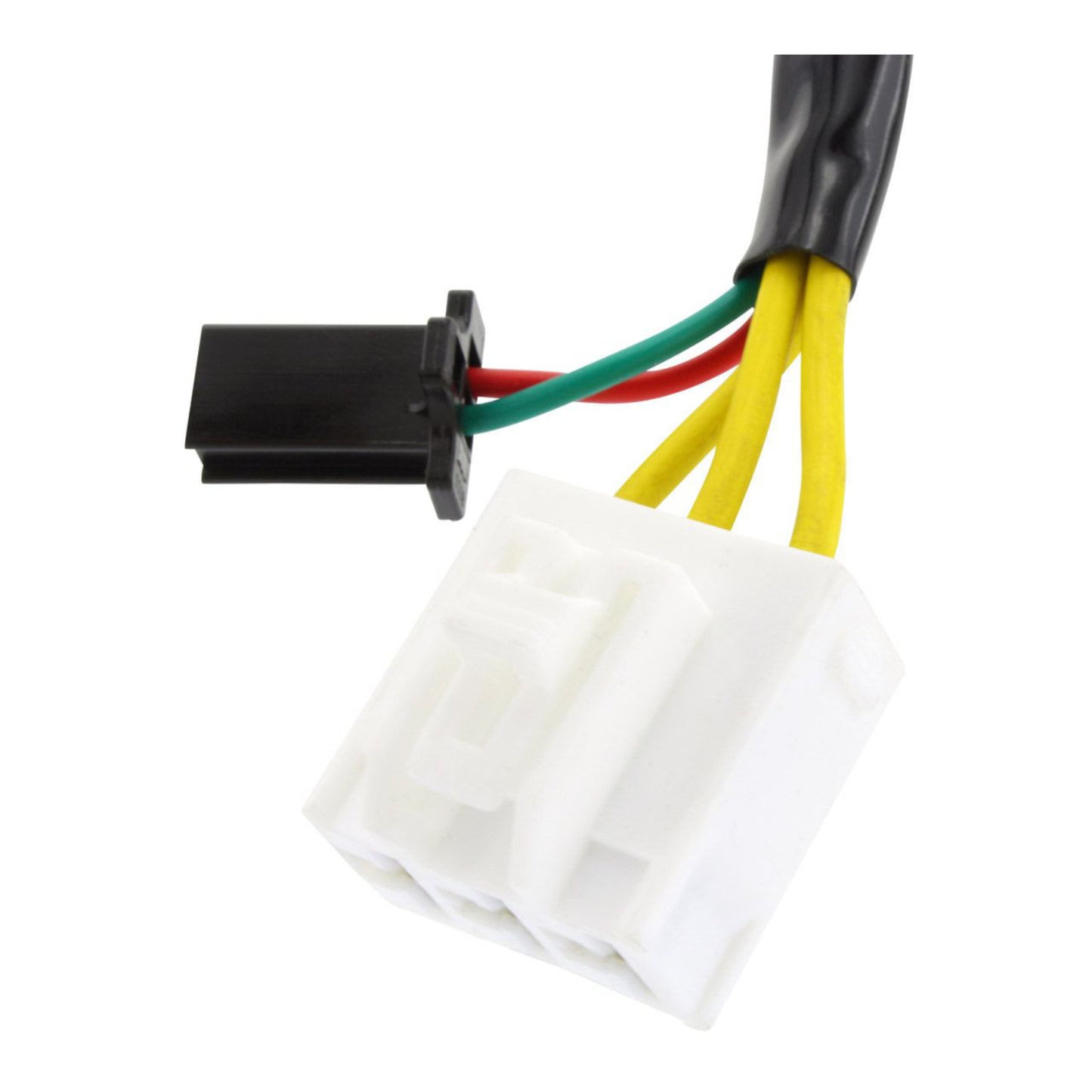

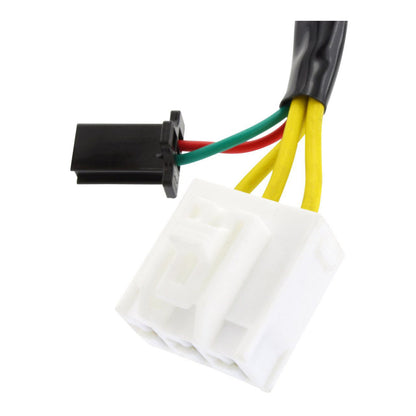

  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Yellow to Yellow = 0.6 ohms +-20%
    • Alternator: Yellow to ground = O.L
    • Pickup: Green to Red = 192 ohms +-20%

Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included

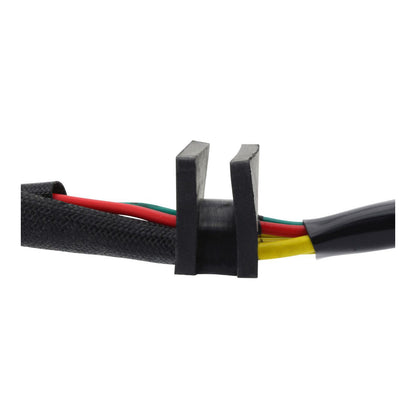

  • Rubber grommet included
  • All products shipped are tested
