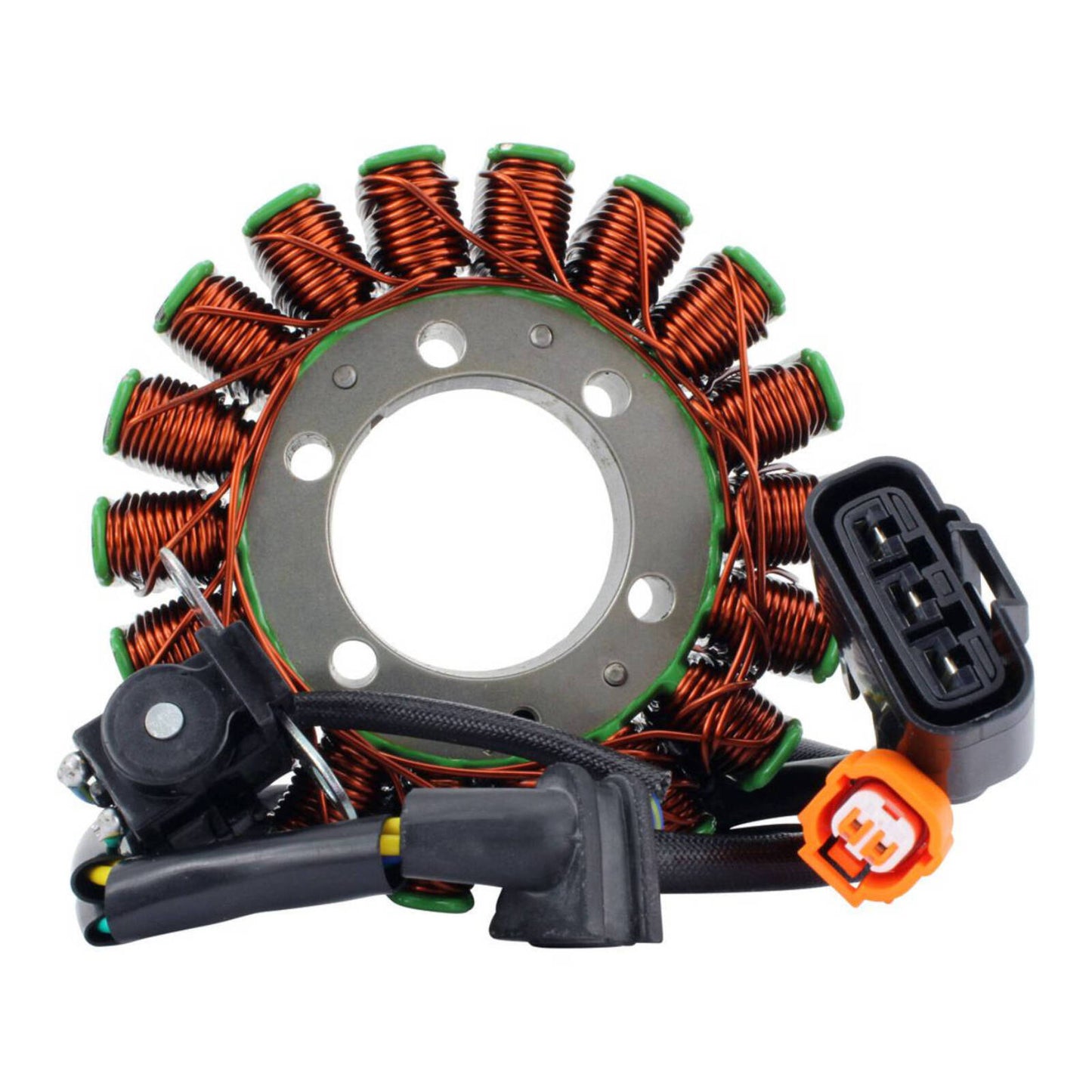

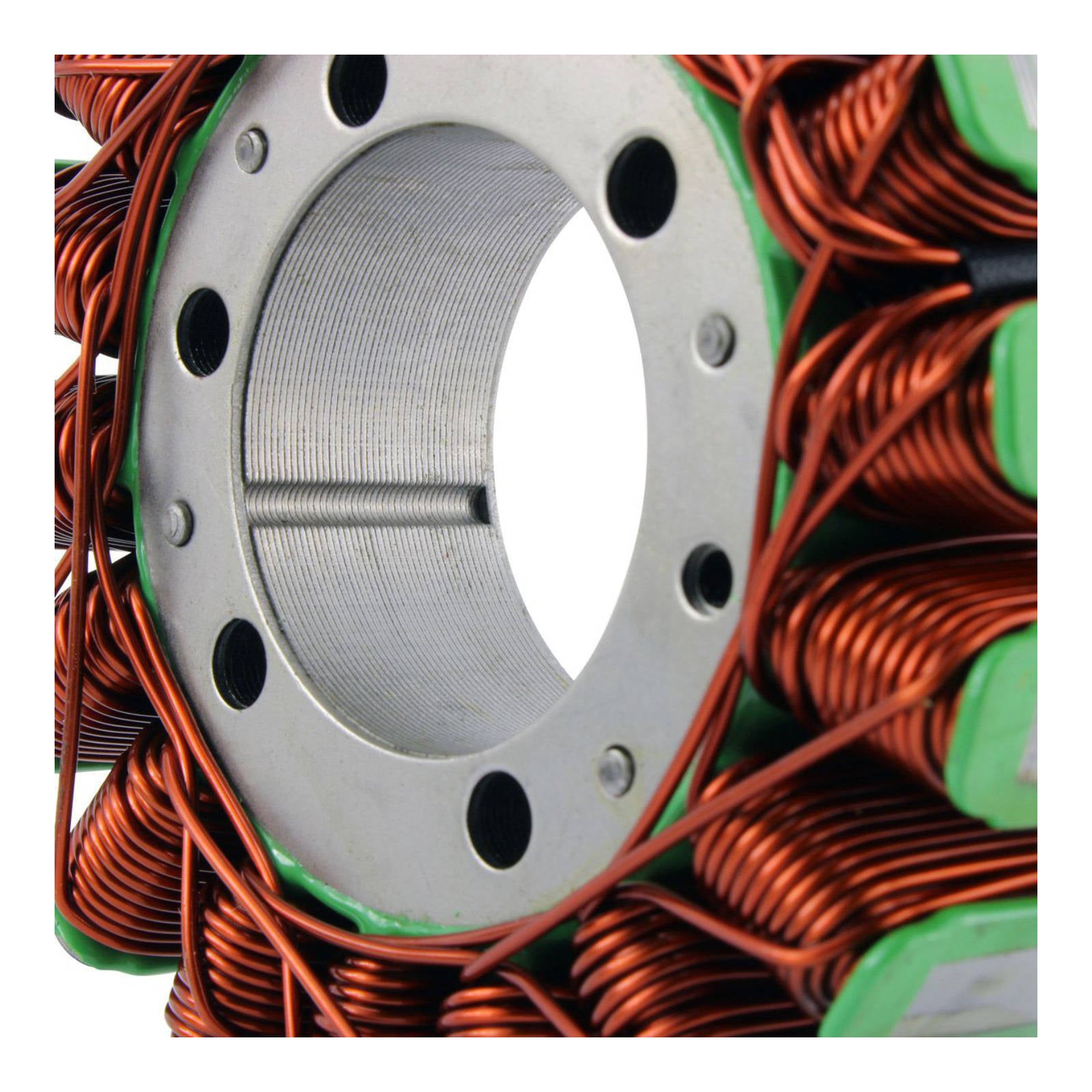

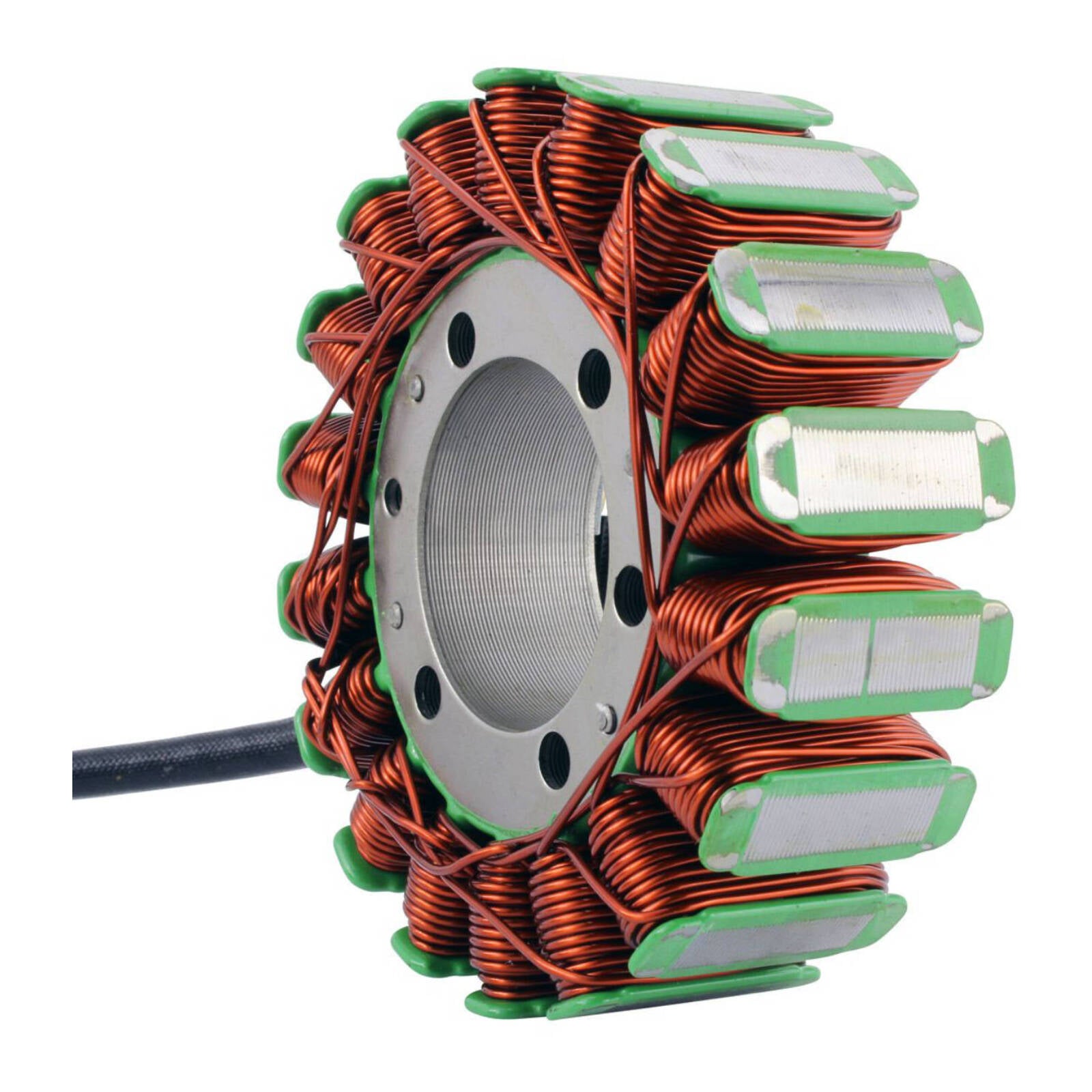

Generator Stator Honda Pioneer 500 '15-'21 (RMS010-107118)

Generator Stator Honda Pioneer 500 '15-'21 (RMS010-107118)

$483.99 NZD
$483.99 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Plug-and-play replacement stator from RM Stator.



Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 107 mm
  • Thickness: 26 mm
  • Length of wires stator to grommet: 105 mm
  • Length of wires grommet to plug: 275 mm
  • Length of pickup coil's wire to grommet: 75 mm



Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
  • Alternator: Between each Yellow = 0.5 ohms +-20%
  • Pickup: Blue/Yellow to Green = 232 ohms +-20%



Details:

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included
  • All products shipped are tested
