Generator Stator Kawasaki KLX140 '08-'21 (RMS010-107080)

Generator Stator Kawasaki KLX140 '08-'21 (RMS010-107080)

$355.99 NZD
$355.99 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

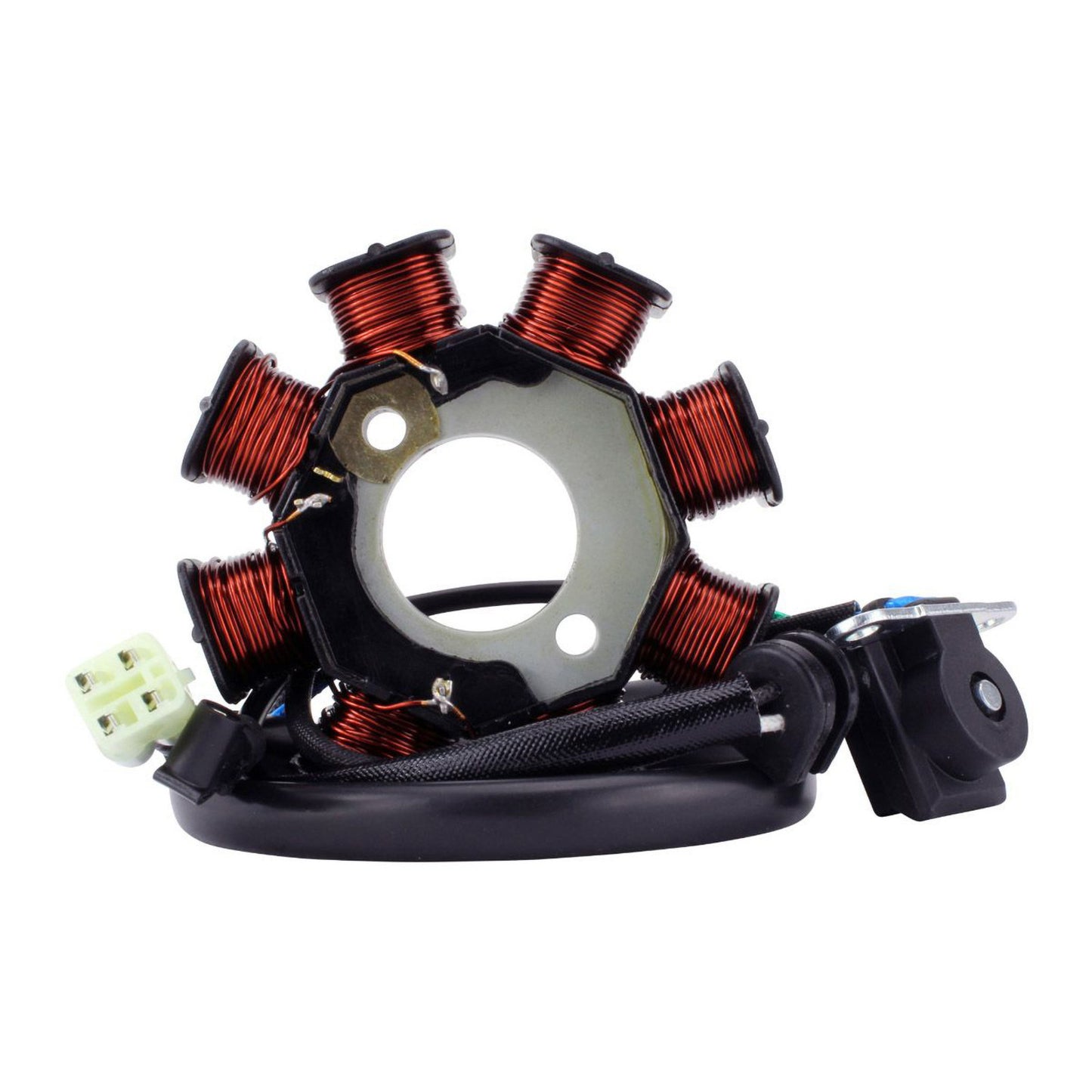

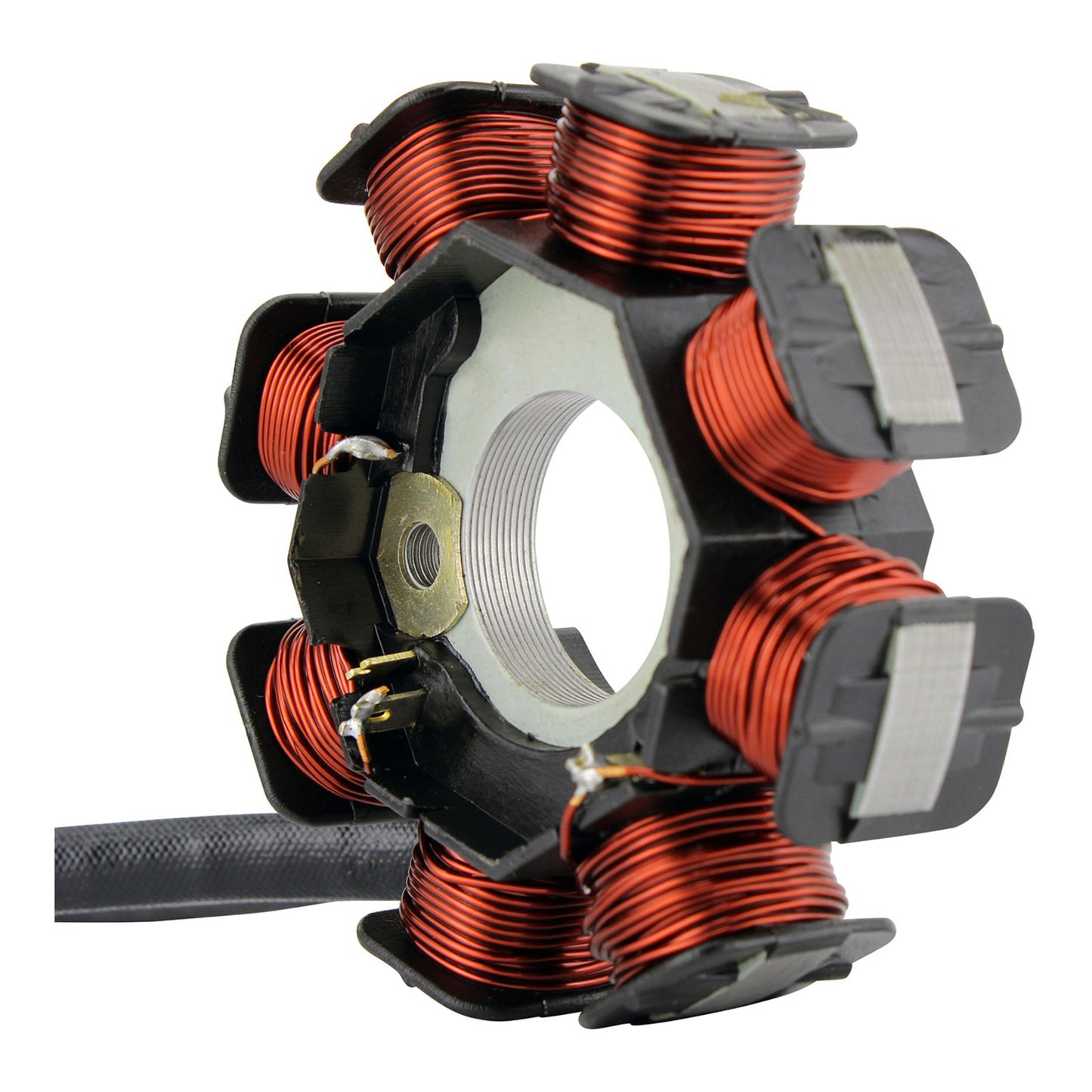

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 29 mm
  • Exterior diameter: 88 mm
  • Thickness: 10 mm
  • Length of wires stator to grommet: 110 mm
  • Length of wires grommet to plug: 475, 100 mm
  • Length of pickup coil's wire to grommet: 145 mm

Other specifications:

  • Number of wires: 4
  • Number of plugs: 2
  • Number of holes: 2
  • Number of poles: 8

Wire to wire resistance:

  • Alternator: White to Ground = 1.1 ohms +-20%
  • Pickup: Blue/yellow to Ground = 119 ohms +-20%
