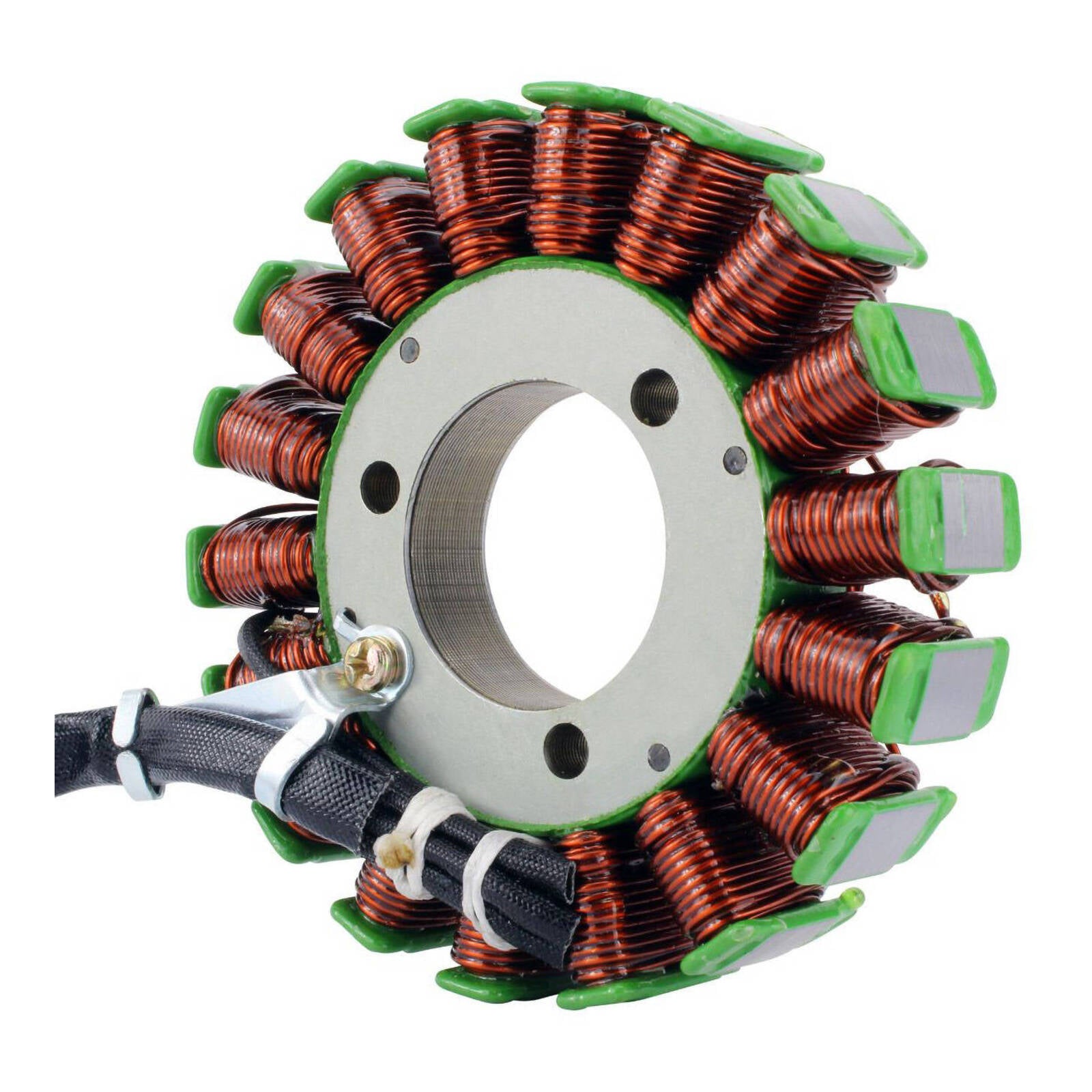

• Generator Stator Kawasaki Ninja 400 '18-'20 (RMS010-107074)
  • Generator Stator Kawasaki Ninja 400 '18-'20 (RMS010-107074)
1 2

RMS010107074

Generator Stator Kawasaki Ninja 400 '18-'20 (RMS010-107074)

Generator Stator Kawasaki Ninja 400 '18-'20 (RMS010-107074)

$429.99 NZD
$429.99 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

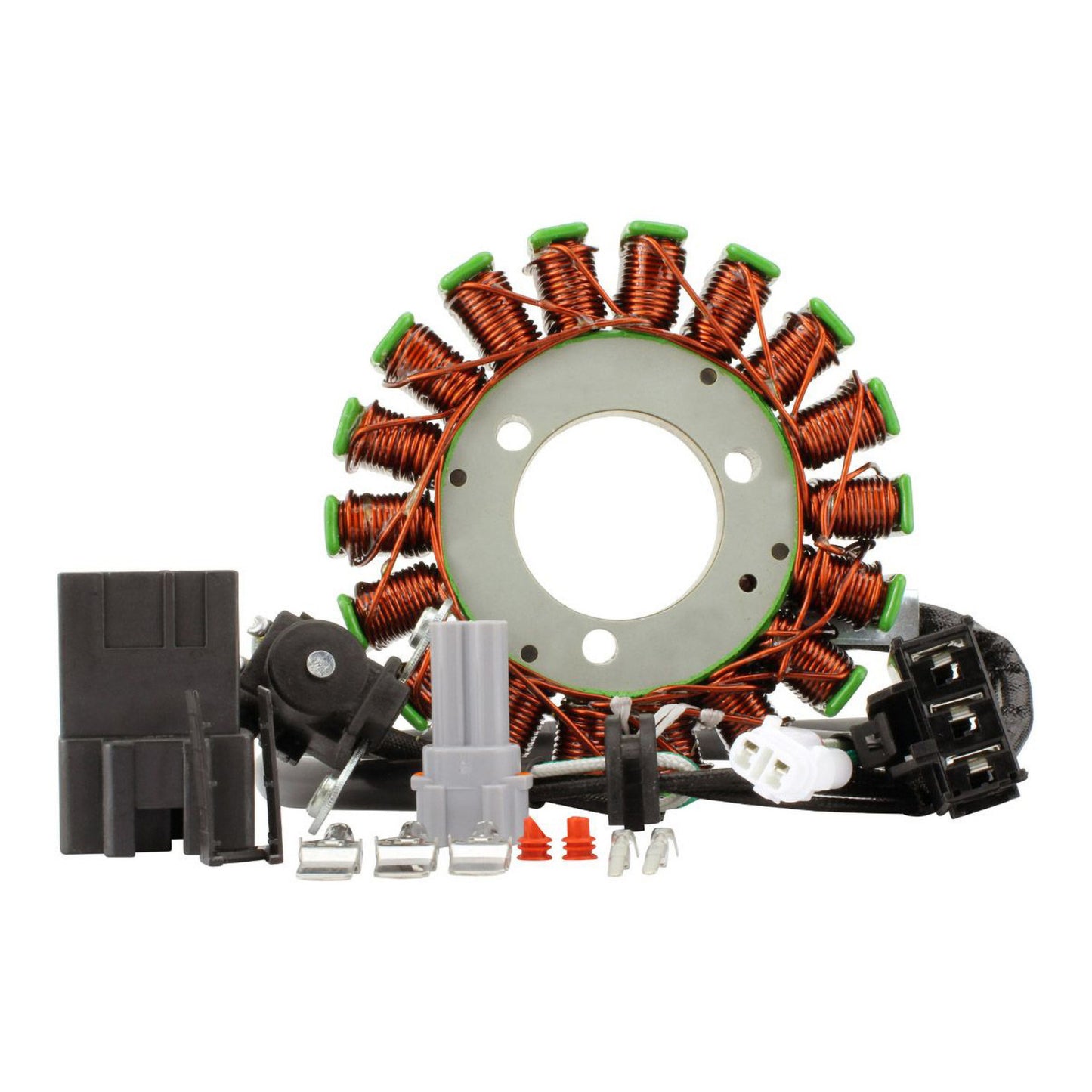

  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 38 mm
  • Exterior diameter: 107 mm
  • Thickness: 16 mm
  • Length of wires stator to grommet: 95 mm
  • Length of wires grommet to plug: 380 mm
  • Length of pickup coil's wire to grommet: 75 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of holes: 3
  • Number of poles: 18

Wire to wire resistance:

  • Alternator : Black to Black = 0.6 ohms +-20%
  • Pickup: White to Green/White = 232 ohms +-20%
View full details
