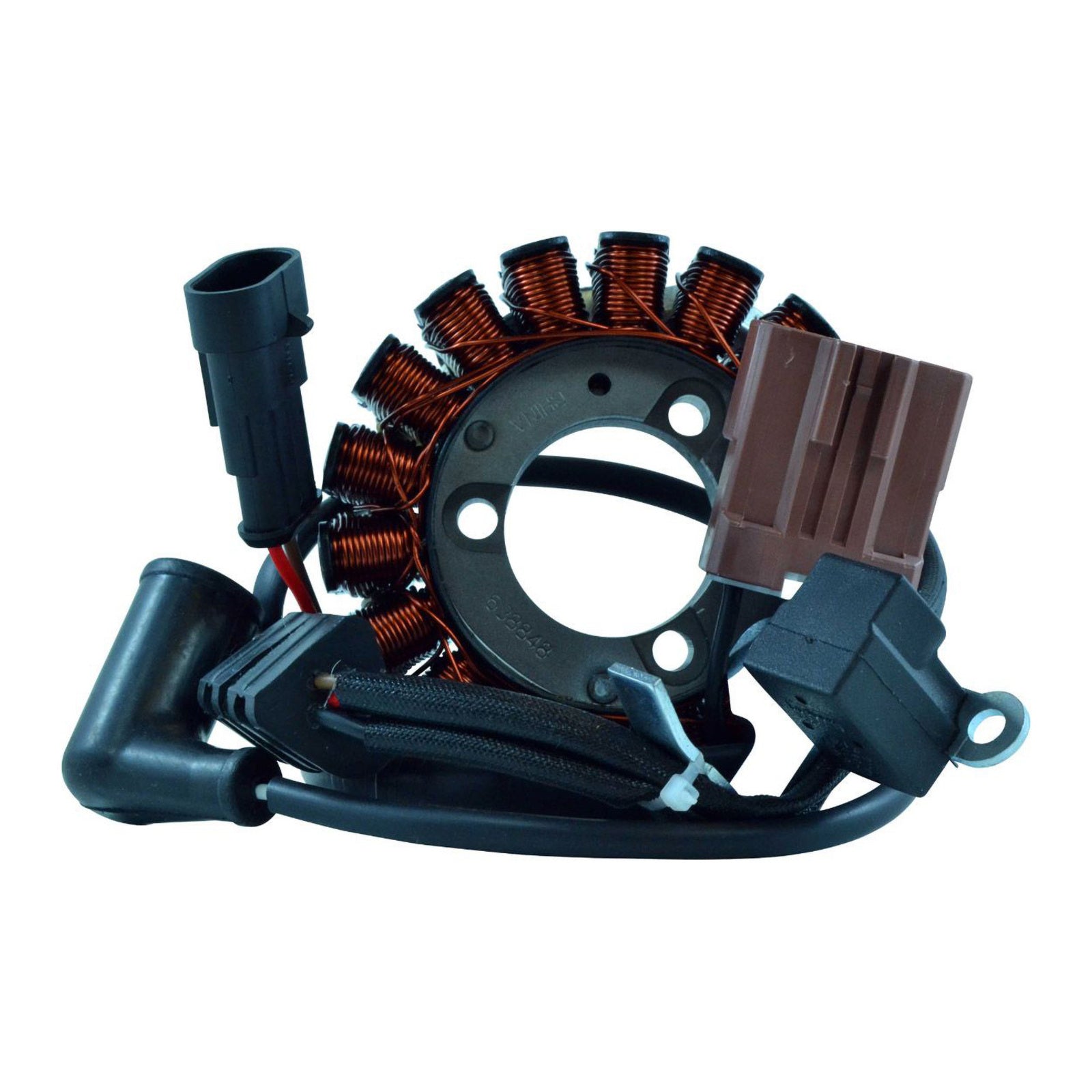

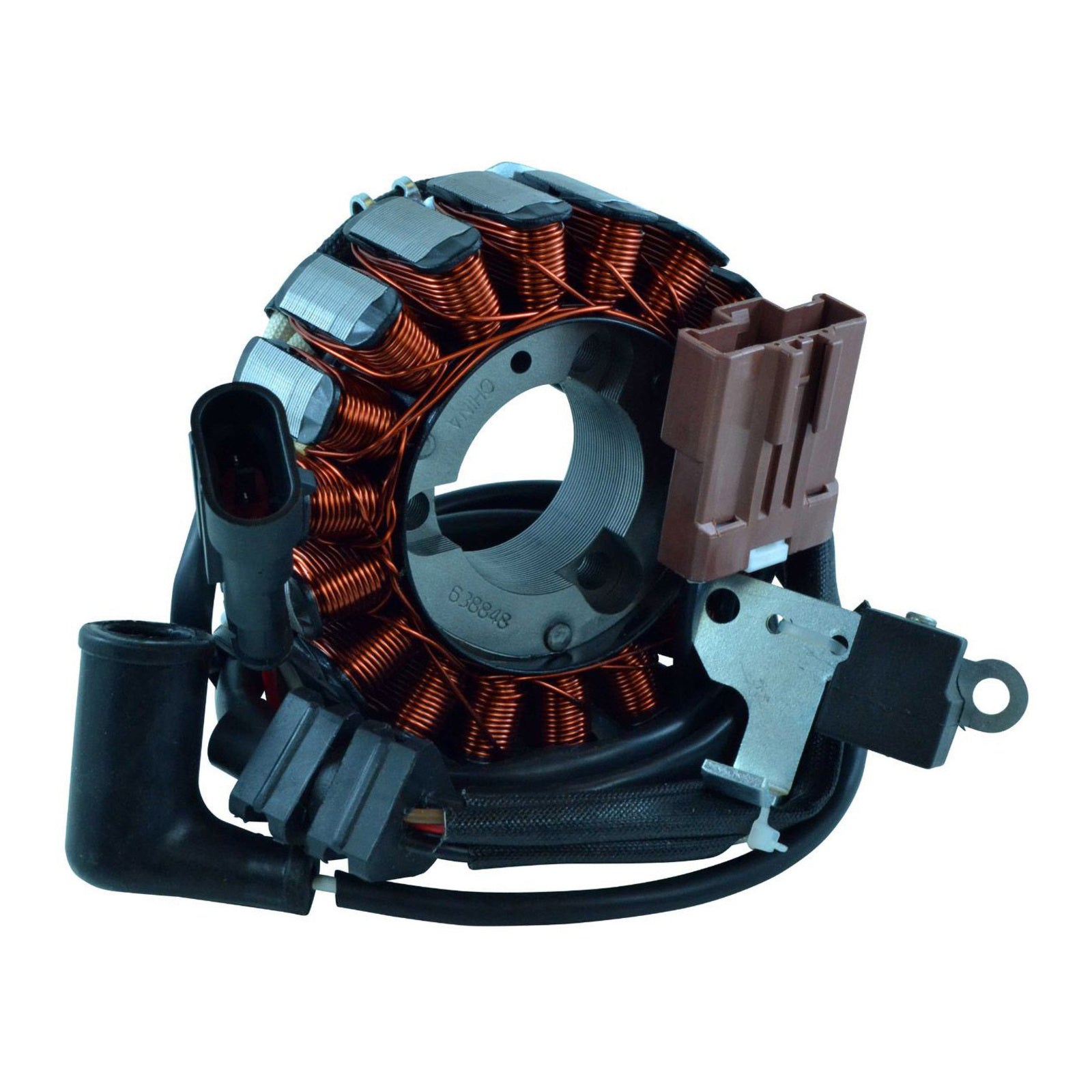

Stator Assorted Scooters '03-'17 (RMS010-104193)

Stator Assorted Scooters '03-'17 (RMS010-104193)

$259.99 NZD
$259.99 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 36 mm
  • Exterior diameter: 95 mm
  • Thickness: 32 mm
  • Length of wires stator to grommet: 165 mm
  • Length of wires grommet to plug: 585 mm / 780 mm
  • Length of pickup coil's wire to grommet: 88 mm

Other specifications:

  • Number of wires: 6
  • Number of plugs : 3
  • Number of pins: 6
  • Number of poles: 18

Wire to wire resistance:

  • Alternator: Yellow between each Yellow = 0.4 ohms +-20%
  • Pickup: Green/White to Yellow/White = 125 ohms +-20%
  • Source: Black/Red to Ground = 210 ohms +-20%
